Haulotte
Mec
2647ES
Aerial Lift
21 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Engine
| System Voltage | 24 V |
|---|---|
| Battery Amp Hours | 180 |
| Number of Batteries | 4 |
| Charger Amps | 30 |
Dimensions
| Ground Clearance | 5 in |
|---|---|
| Wheelbase | 74 in |
| Overall Length | 8 in |
| Overall Width | 32 in |
| Turning Radius | 95 in |
| Height w/ Rails | 79 in |
| Height w/o Rails | 46 in |
Performance
| Operating Weight | 3,814 lb |
|---|---|
| Max Speed | 2.2 mph |
| Tire Size | 15 x 5 x 2 |
| Hydraulic System Fluid Capacity | 7.2 gal |
| Tire Fill/Type | solid/non marking |
Platform
| Max Platform Height | 244 in |
|---|---|
| Max Platform Weight Capacity | 772 lb |
| Platform Inner Length | 91 in |
| Platform Inner Width | 32 in |
| Max Working Height | 323 in |
| Lift Time | 37.0 s |
| Deck Extension | 36 in |
| Lower Time | 41.0 s |

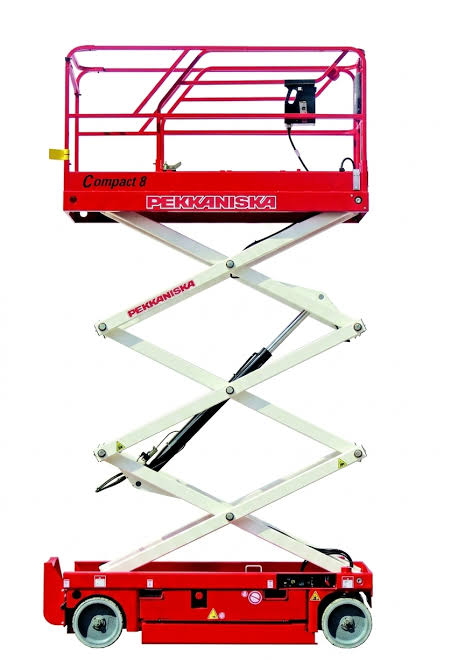

Comparable machines
