Snorkel

S1930

Aerial Lift

Max Platform Height
229 in
Overall Length
6 in
Overall Width
30 in
All aerial lifts

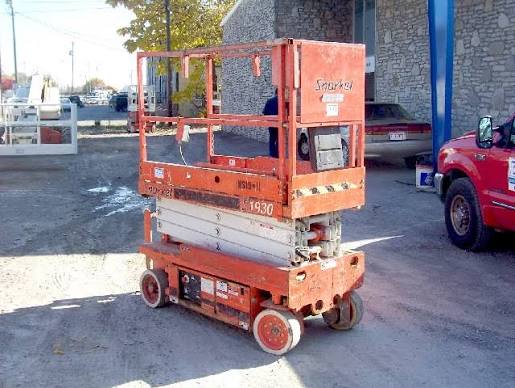

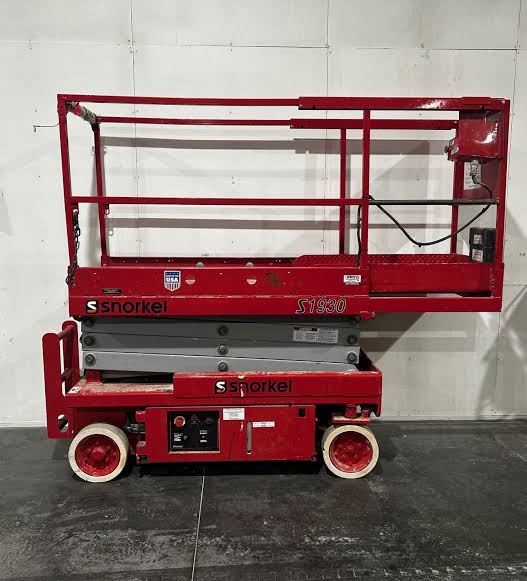

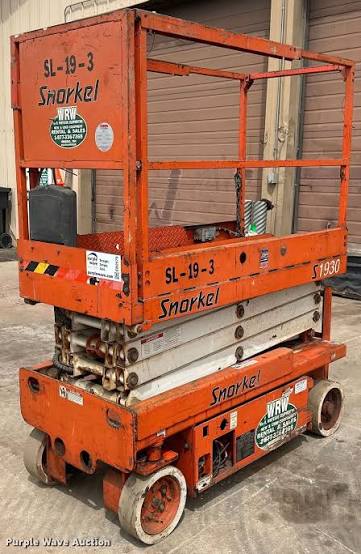

Snorkel S1930 Aerial Lift
1 / 5
Image 1 of 5
Image: gamrentals.com

Specifications

25 data points

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase54 in
Overall Length6 in
Overall Width30 in
Turning Radius65 in
Stowed Width30 in
Stowed Height79 in
Boom Type/SizeSL ft (0.00 m)
Height w/ Rails79 in
Platform Size29 in

Transmission

Transmission specifications
4WDStd

Tires & Wheels

Tires & Wheels specifications
Tire Size12x4

Performance

Performance specifications
Operating Weight2,945 lb
Max Speed2.0 mph
Tire Size4x12
Tire Fill/TypeSolid Rubber

Capacity

Capacity specifications
Platform Capacity500 lb

Platform

Platform specifications
Max Platform Height229 in
Max Platform Weight Capacity500 lb
Platform Inner Length64 in
Platform Inner Width29 in
Lift Time12.0 s
Deck Extension36 in
Lower Time24.0 s
Height of Rails40 in
