JLG

T350

Aerial Lift

Max Platform Height
414 in
Overall Length
22 in
Overall Width
59 in
All aerial lifts

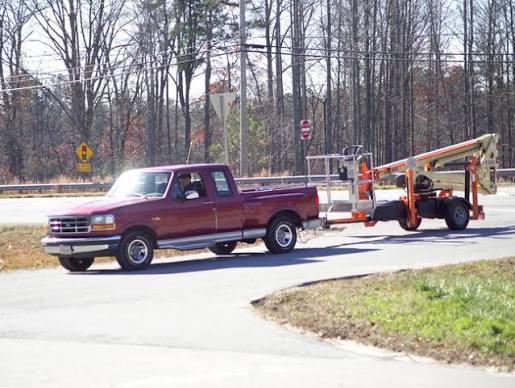

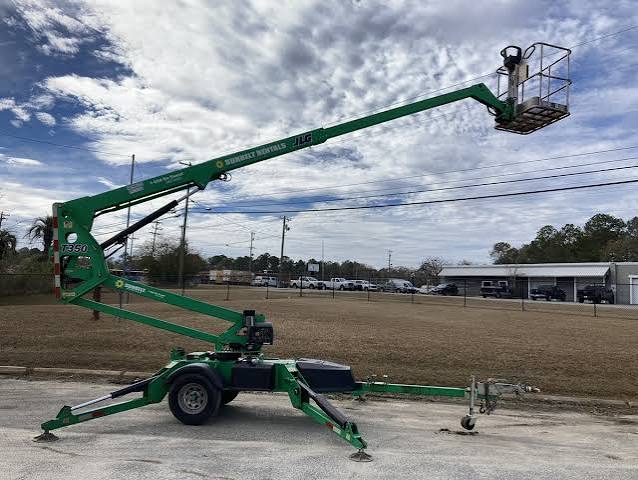

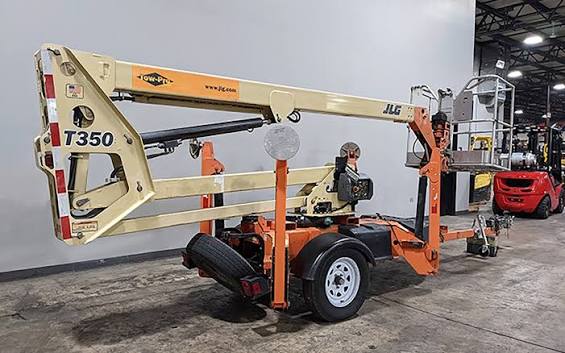

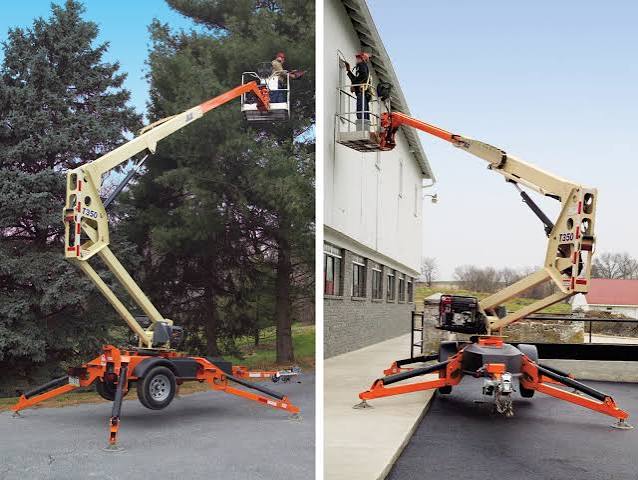

JLG T350 Aerial Lift
1 / 5
Image 1 of 5
Image: papemh.com

Specifications

21 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours220
Number of Batteries4

Hydraulic System

Hydraulic System specifications
Hydraulic Reservoir4.0 gal

Dimensions

Dimensions specifications
Ground Clearance1 in
Overall Length22 in
Overall Width59 in
Overall Height - mast lowered79 in
Platform Dimension B48 in
Platform Dimension A31 in
Outrigger Footprint Length141 in

Performance

Performance specifications
Operating Weight3,400 lb
Tire Size205-75 R14
Tire Fill/TypePneumatic
Platform Capacity500 lb
Swing410 °

Platform

Platform specifications
Max Platform Height414 in
Max Platform Weight Capacity500 lb
Platform Inner Length48 in
Platform Inner Width30 in
Max Horizontal Reach243 in
