Haulotte

H21TX

Aerial Lift

Max Platform Height
741 in
Overall Length
30 in
Overall Width
98 in
All aerial lifts

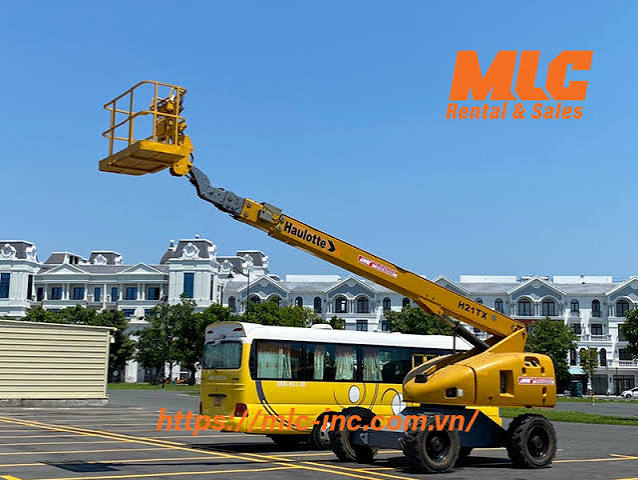

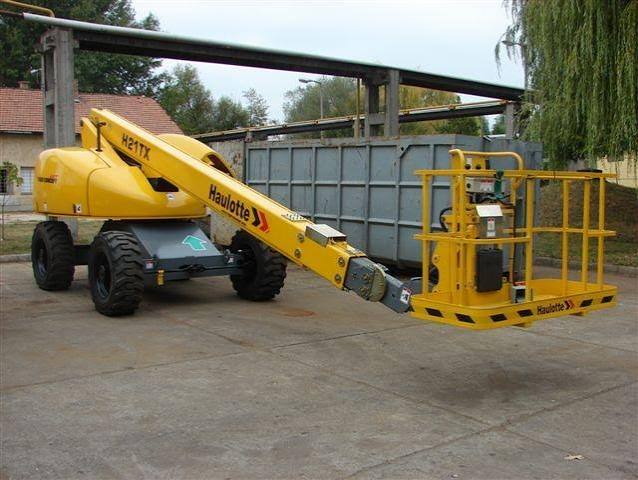

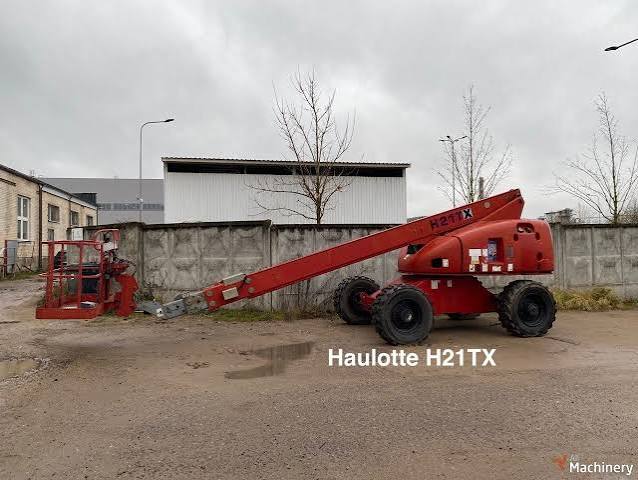

Haulotte H21TX Aerial Lift
1 / 5
Image 1 of 5
Image: mayonmachinery.com

Specifications

21 data points

Engine

Engine specifications
Gross Power43.1 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase98 in
Overall Length30 in
Overall Width98 in
Turning Radius243 in
Overall Height - mast lowered113 in

Performance

Performance specifications
Operating Weight25,904 lb
Max Speed3.2 mph
Tire Size15 R 22
Hydraulic System Fluid Capacity39.7 gal
Tire Fill/Typefoam filled/standard
Fuel Capacity39.7 gal

Platform

Platform specifications
Max Platform Height741 in
Max Platform Weight Capacity507 lb
Platform Inner Length71 in
Platform Inner Width32 in
Max Working Height820 in
Max Horizontal Reach678 in
Platform Rotation180 °
