Hitachi
Terex
TA27

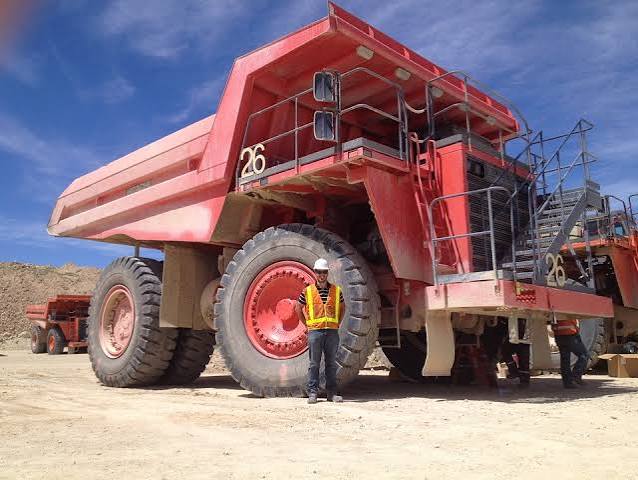

Off-Highway Truck
46 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Fuel Capacity | 265.0 gal |
|---|---|
| Tire Size | 31/80R49 E4 |
| Engine Oil Capacity | 37.8 gal |
| Cooling System Fluid Capacity | 73.0 gal |
| Hydraulic System Fluid Capacity | 115.0 gal |
| Operating Voltage | 24 V |
| Steering System Fluid Capacity | 31.0 gal |
| Diff and Final Drive Fluid Capacity | 39.0 gal |
| Brake/Hoist System Fluid Capacity | 84.1 gal |
Engine
| Engine Model | QST 30 |
|---|---|
| Displacement | 1,861 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 1,200.0 hp |
| Net Power | 1,121.0 hp |
| Max Torque | 3,750 lb-ft |
| Rated Engine Speed | 115 rpm |
Weights
| Empty Weight | 158,150 lb |
|---|---|
| Loaded Weight | 375,000 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 47.8 % |
| Weight Distribution Rear - empty | 52.2 % |
Dimensions
| Ground Clearance | 35 in |
|---|---|
| Wheelbase | 180 in |
| Overall Length | 406 in |
| Overall Width | 239 in |
| Overall Height | 210 in |
| Dump Height | 389 in |
| Dump Ground Clearance | 33 in |
Transmission
| Max Speed | 38.3 mph |
|---|---|
| Transmission Type | Allison M9600A planetary type full automatic shift. Integral torque converter with automatic lock-up shifting in all ranges. |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 2 |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 215,368.2 gal |
|---|
Dump
| Dump Angle | 61 ° |
|---|---|
| Raise Time | 12.8 s |
| Lower Time | 12.1 s |
| Load Capacity - heaped | 78.90 yd³ |
| Load Capacity - Struck | 50.50 yd³ |
Approximate Weights - Flat Floor
| Body | 1,200 lb |
|---|
