Hitachi
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

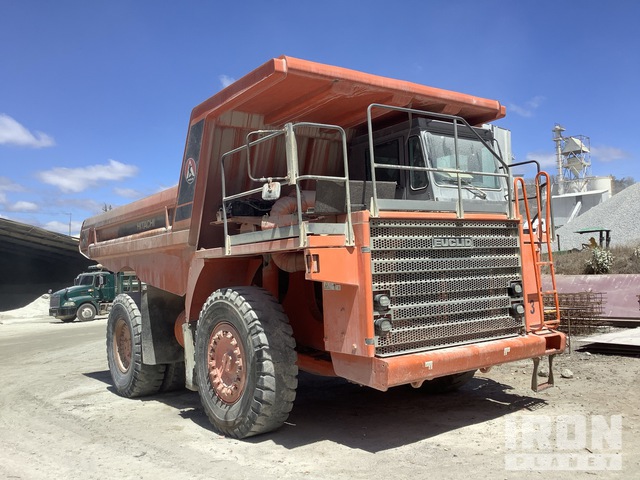

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 120.0 gal |
|---|---|
| Tire Size | 18R33(**)E4 Radial |
| Engine Oil Capacity | 16.2 gal |
| Cooling System Fluid Capacity | 42.1 gal |
| Operating Voltage | 24 V |
| Steering System Fluid Capacity | 25.7 gal |
| Diff and Final Drive Fluid Capacity | 13.3 gal |
| Brake/Hoist System Fluid Capacity | 47.1 gal |
Engine
| Engine Model | QSX15-525 |
|---|---|
| Displacement | 915 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 525.0 hp |
| Net Power | 480.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | — |
Weights
| Empty Weight | 70,328 lb |
|---|---|
| Loaded Weight | 154,103 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 49.0 % |
| Weight Distribution Rear - empty | 51.0 % |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Wheelbase | 150 in |
| Overall Length | 342 in |
| Overall Width | 189 in |
| Overall Height | 170 in |
| Dump Height | 320 in |
| Dump Ground Clearance | 19 in |
Transmission
| Max Speed | 47.3 mph |
|---|---|
| Transmission Type | Allison M5610A planetary full automatic shift |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 2 |
Dump
| Rated Payload | — |
|---|---|
| Dump Angle | 60 ° |
| Raise Time | 13.9 s |
| Lower Time | 14.0 s |
| Load Capacity - heaped | 31.40 yd³ |
| Load Capacity - Struck | 22.30 yd³ |
