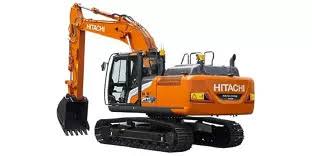

Hitachi
EX120-5
- Operating Weight
- 26,000 lb
- Max Digging Depth
- 204 in
- Max Digging Depth
- 220 in
- Net Power
- 81.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 26,000 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 50.2 gal/min |
| Hydraulic System Fluid Capacity | 35.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Swing Drive Fluid Capacity | 0.9 gal |
Engine
| Engine Model | A-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 81.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 232 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 204 in |
|---|---|
| Max Reach Along Ground | 306 in |
| Max Loading Height | 234 in |
| Max Vertical Wall Digging Depth | 183 in |
| Max Cutting Height | 329 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.90 yd³ |
| Minimum Bucket Capacity | 0.30 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 220 in |
|---|---|
| Max Vertical Wall Digging Depth | 198 in |
| Max Cutting Height | 337 in |
| Max Loading Height | 243 in |
| Max Reach Along Ground | 322 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 108 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 239 in |
|---|---|
| Max Cutting Height | 350 in |
| Max Loading Height | 256 in |
| Max Vertical Wall Digging Depth | 216 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 108 in |
