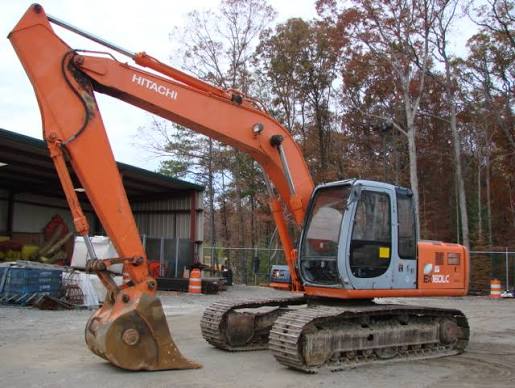

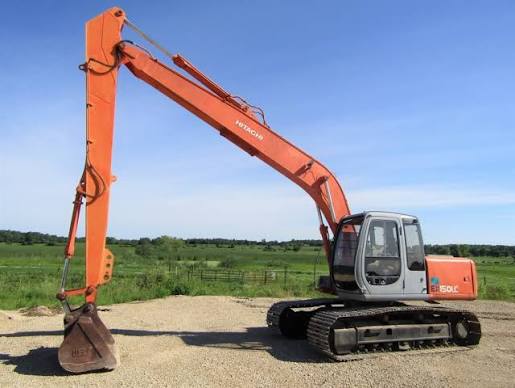

Hitachi
EX150LC-5
- Operating Weight
- 33,520 lb
- Max Digging Depth
- 216 in
- Max Digging Depth
- 239 in
- Net Power
- 99.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 33,520 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 66.6 gal/min |
| Hydraulic System Fluid Capacity | 39.7 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Swing Drive Fluid Capacity | 2.2 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | A-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 99.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 260 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 110 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 37 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 216 in |
|---|---|
| Max Reach Along Ground | 323 in |
| Max Loading Height | 229 in |
| Max Vertical Wall Digging Depth | 172 in |
| Max Cutting Height | 335 in |
| Shipping Length of Unit | 340 in |
| Shipping Height of Unit | 120 in |
Bucket
| Reference Bucket Capacity | 0.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.10 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 206 in |
| Max Cutting Height | 348 in |
| Max Loading Height | 241 in |
| Max Reach Along Ground | 343 in |
| Shipping Length of Unit | 337 in |
| Shipping Height of Unit | 110 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 258 in |
|---|---|
| Max Cutting Height | 357 in |
| Max Loading Height | 251 in |
| Max Vertical Wall Digging Depth | 227 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 337 in |
| Shipping Height of Unit | 120 in |
