Hitachi

EX200-3

Excavator

Operating Weight
33,069 lb
Max Digging Depth
236 in
Max Digging Depth
263 in
Net Power
132.8 hp
All excavators

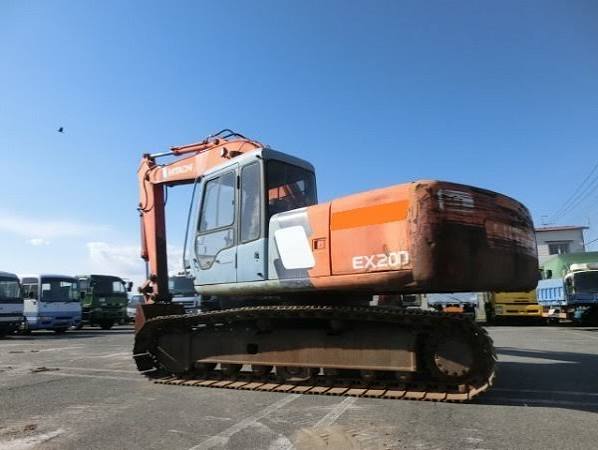

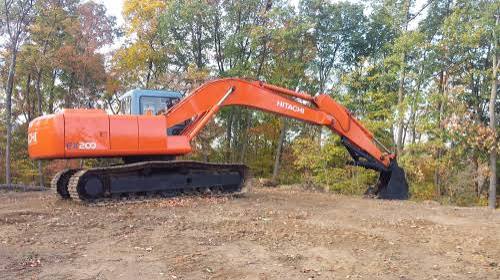

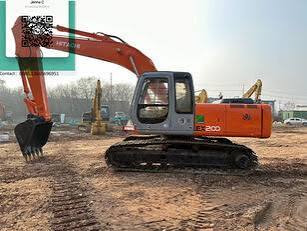

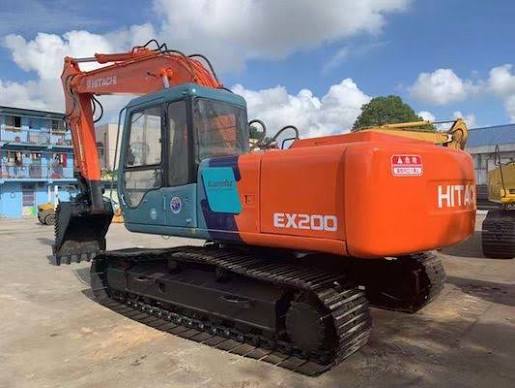

Hitachi EX200-3 Excavator
1 / 5
Image 1 of 5
Image: solariamachinery.en.made-in-china.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,069 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity97.8 gal/min
Hydraulic System Fluid Capacity60.8 gal
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity5.6 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.2 gal

Engine

Engine specifications
Engine Model6BD1T
Displacement353 in³
Power Measured @2,050 rpm
Net Power132.8 hp
Torque Measured @1,600 rpm
Max Torque340 lb-ft
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab113 in
Length of Track on Ground165 in
Tail Swing Radius109 in
Width to Outside of Tracks113 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Track Gauge88 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth236 in
Max Reach Along Ground357 in
Max Loading Height252 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in
Shipping Length of Unit377 in
Shipping Height of Unit120 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth263 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height378 in
Max Loading Height268 in
Max Reach Along Ground384 in
Shipping Length of Unit374 in
Shipping Height of Unit114 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth323 in
Max Cutting Height403 in
Max Loading Height293 in
Max Vertical Wall Digging Depth298 in
Max Reach Along Ground439 in
Shipping Length of Unit378 in
Shipping Height of Unit138 in
