Hitachi

EX30-2

Mini Excavator

Operating Weight
6,349 lb
Max Digging Depth
114 in
Net Power
23.2 hp
All mini excavators

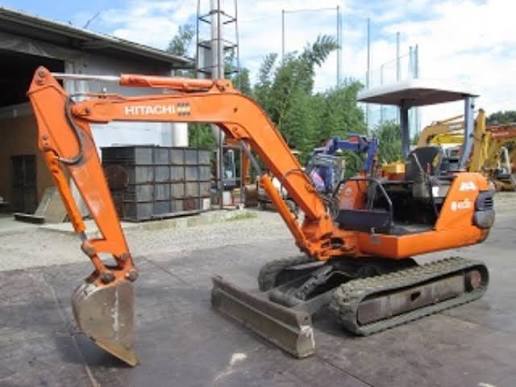

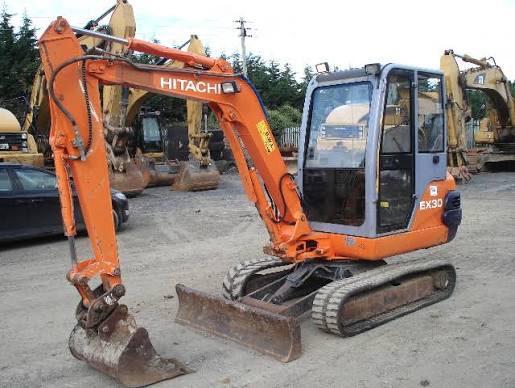

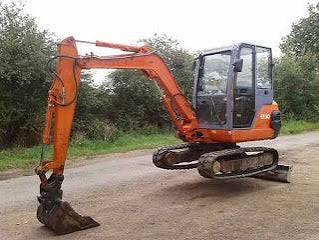

Hitachi EX30-2 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1-us.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,349 lb
Fuel Capacity13.3 gal
Hydraulic Pump Flow Capacity19.1 gal/min
Hydraulic System Fluid Capacity10.6 gal
Hydraulic System Relief Valve Pressure3,271 psi
Operating Voltage12 V
Alternator Supplied Amperage52 A
Engine Oil Capacity1.7 gal
Cooling System Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelV1505-KA
Displacement92 in³
Power Measured @2,000 rpm
Net Power23.2 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,500 rpm
Max Torque67 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab97 in
Length of Track on Ground64 in
Tail Swing Radius54 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge49 in
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size12 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth114 in
Max Reach Along Ground190 in
Max Vertical Wall Digging Depth86 in
Max Loading Height135 in
Shipping Length of Unit185 in
Max Cutting Height187 in
Shipping Height of Unit97 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
