Hitachi

EX40-2

Mini Excavator

Operating Weight
9,149 lb
Max Digging Depth
134 in
Net Power
35.5 hp
All mini excavators

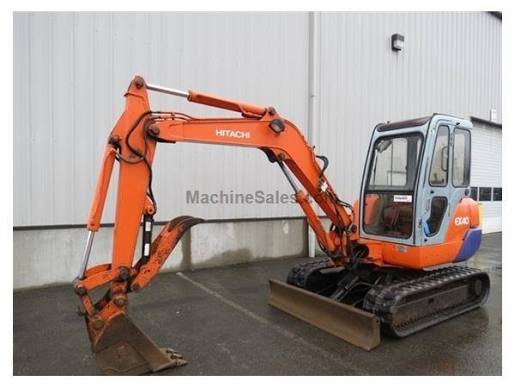

Hitachi EX40-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lsengineers.co.uk

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,149 lb
Fuel Capacity13.3 gal
Hydraulic Pump Flow Capacity23.3 gal/min
Hydraulic System Fluid Capacity16.4 gal
Hydraulic System Relief Valve Pressure3,840 psi
Operating Voltage12 V
Alternator Supplied Amperage52 A
Engine Oil Capacity2.4 gal
Cooling System Fluid Capacity2.0 gal

Engine

Engine specifications
Engine ModelV2203-KA
Displacement134 in³
Power Measured @2,100 rpm
Net Power35.5 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,500 rpm
Max Torque93 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Length of Track on Ground77 in
Tail Swing Radius57 in
Width to Outside of Tracks73 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge57 in
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground226 in
Max Vertical Wall Digging Depth107 in
Max Loading Height163 in
Shipping Length of Unit215 in
Max Cutting Height229 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
