Hitachi

EX8000

Mini Excavator

Operating Weight
1,818,814 lb
Gross Power
3,754.9 hp
All mini excavators

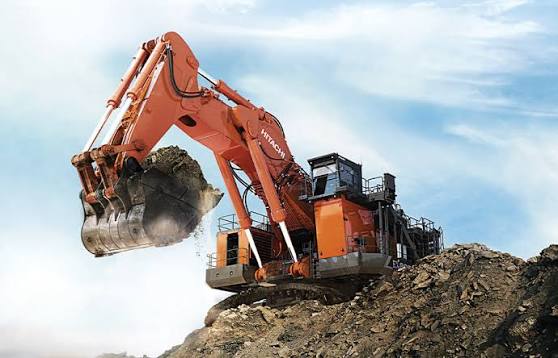

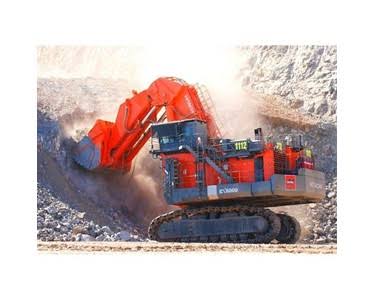

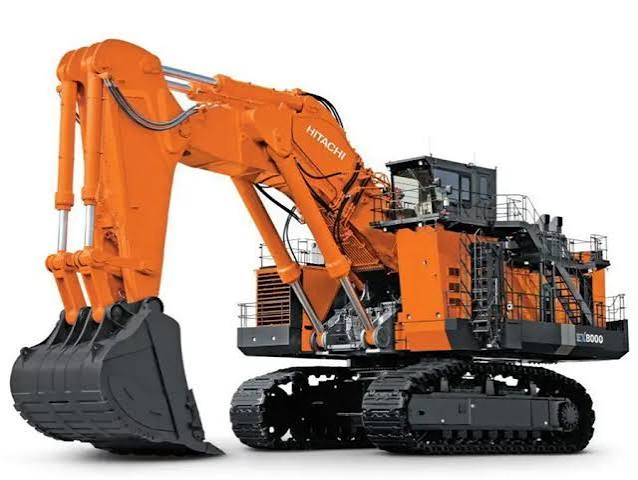

Hitachi EX8000 Mini Excavator
1 / 5
Image 1 of 5
Image: tatahitachi.co.in

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,818,814 lb
Fuel Capacity3,799.6 gal
Hydraulic System Fluid Capacity2,109.8 gal
Operating Voltage24 V
Engine Oil Capacity163.8 gal
Cooling System Fluid Capacity179.8 gal
Swing Speed3 rpm

Engine

Engine specifications
Engine ModelS16R-Y1TAA2
Displacement7,982 in³
Power Measured @1,600 rpm
Gross Power3,754.9 hp
Number of Cylinders16
Aspirationturbocharged air-cooled intercooler

Dimensions

Dimensions specifications
Height - Top of Cab390 in
Length of Track on Ground312 in
Tail Swing Radius326 in
Digging Depth156 in
Digging Reach804 in
Upper Structure Ground Clearance135 in
Length of Tracks414 in

Undercarriage

Undercarriage specifications
Track Gauge269 in
Max Travel Speed1.2 mph
Number of Upper Rollers3
Loading Shovel Operating Weight1,719,606 lb
Loading Shovel Shoe Width73 in
Loading Shovel Ground Pressure34 psi
Number of Lower Rollers7
Number of Track Shoes per Side39
Tail Swing Radius326 in

Bucket

Bucket specifications
Reference Bucket Capacity52.40 yd³

Loading Shovel

Loading Shovel specifications
Max Dig Depth162 in
Max Dig Reach727 in
Max Cutting Height807 in
Max Dump Height544 in
Arm Crowd Force2,117 lb-ft
