Hitachi
JCB
406 AGRI
Wheel Loader
5 specifications
1 / 5

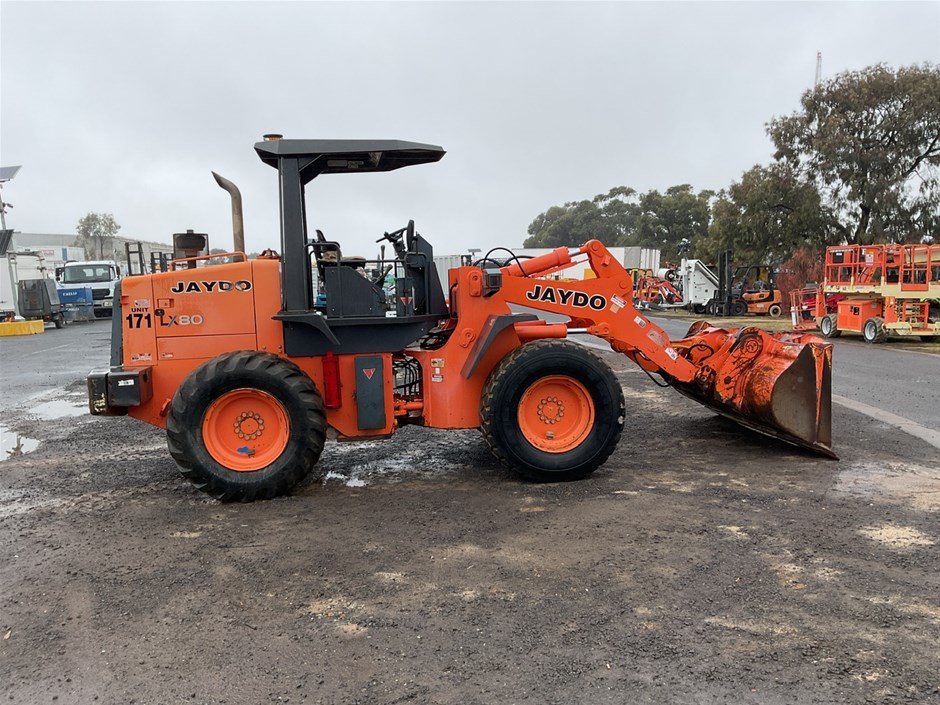

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 17,902 lb |
|---|---|
| Fuel Capacity | 41.0 gal |
| Tire Size | 17.5-25-12PR (L2) |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Static Tipping Weight | 13,911 lb |
| Operating Voltage | 24 V |
| Turning Radius | 185 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 3.7 gal |
| Rear Axle/Diff Fluid Capacity | 3.7 gal |
| Cooling System Fluid Capacity | 6.1 gal |
Engine
| Engine Model | DD-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 108.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharger |
Hydraulic System
| Pump Flow Capacity | 37.3 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.0 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 2,132 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 103 in |
| Width Over Tires | 93 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 251 in |
| Hinge Pin - Max Height | 143 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 21.5 mph |
| Transmission Type | Two-speed shifts ; high/low speed selection through hydraulic clutch |
Bucket
| Bucket Capacity - heaped | 2.11 yd³ |
|---|---|
| Bucket Capacity - struck | 1.80 yd³ |
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 17,760 lb |
| Bucket Width | 98 in |
