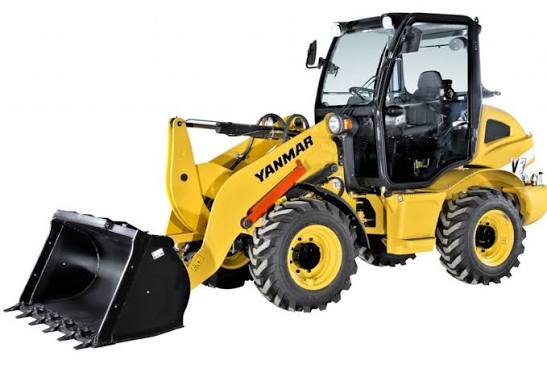

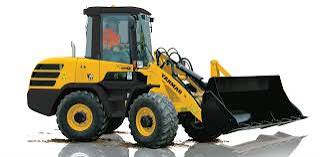

Yanmar
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 10,803 lb |
|---|---|
| Fuel Capacity | 20.0 gal |
| Tire Size | 405/70 R 18 SPT 9 Dunlop |
| Hydraulic System Fluid Capacity | 15.0 gal |
| Static Tipping Weight | 8,312 lb |
| Operating Voltage | 12 V |
| Turning Radius | 165 in |
| Rear Axle Oscillation | 8 ° |
| Rated Bucket Capacity | 1.05 yd³ |
Engine
| Engine Model | TCD 2.9 L4 |
|---|---|
| Displacement | 177 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 60.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Engine Make | Deutz |
| Make | Deutz |
Weights
| Operating Weight | 10,802 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 17.0 gal/min |
|---|---|
| Relief Valve Setting | 3,000 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 104 in |
| Wheelbase | 83 in |
| Width Over Tires | 71 in |
| Reach at Max Lift and Dump | 28 in |
| Length with Bucket on Ground | 200 in |
| Hinge Pin - Max Height | 126 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Transmission Type | Hydrostatic |
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 101 in |
| Bucket Width | 73 in |
General Specifications
| Operating Weight | 10,802 (4,900) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 10,802 (4,900) — Starting 2025 Model Year |
| Bucket Capacity | 1.05 (0.8) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 1.05 (0.8) — Starting 2025 Model Year |
| Engine type | YANMAR 4TNV98C — Starting 2024 Model Year |
| Engine Power | 62 (46.2) — Starting 2024 Model Year |
| Max Dump Height | 8.4 (2.6) — Starting 2024 Model Year |
| Max Dump Height ft.( m) | 8.3 (2.6) — Starting 2025 Model Year |
| OperatingWeight lbs. (kg) | 10,802 (4,900) — Starting 2026 Model Year |
| Engine Power Net hp (kW) | 62 (46.2) — Starting 2025 Model Year |
