Hitachi

ZX180LC-6

Excavator

Operating Weight
42,999 lb
Max Digging Depth
260 in
Max Digging Depth
278 in
Net Power
101.0 hp
All excavators

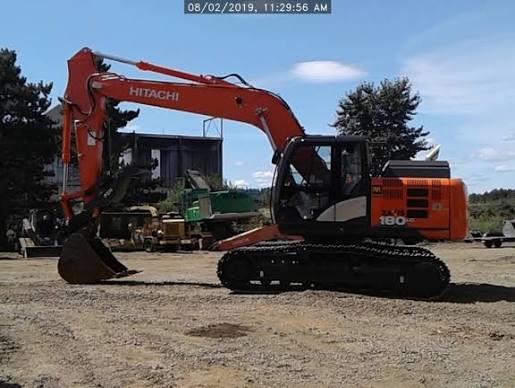

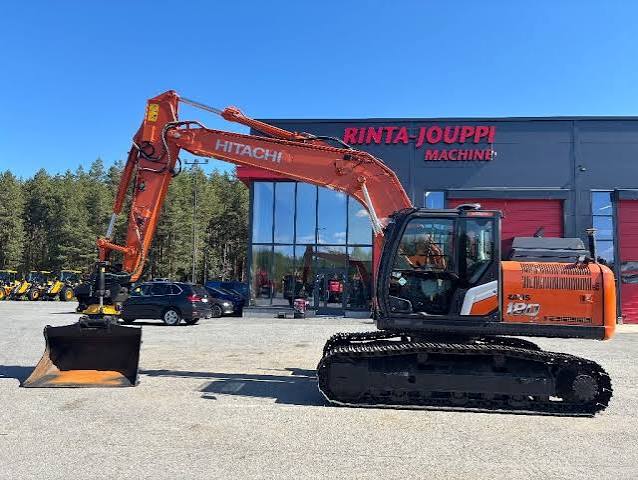

Hitachi ZX180LC-6 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,999 lb
Fuel Capacity75.3 gal
Hydraulic Pump Flow Capacity33.1 gal/min
Hydraulic System Fluid Capacity58.2 gal
Engine Oil Capacity4.5 gal
Cooling System Fluid Capacity6.4 gal

Engine

Engine specifications
Engine Model4JJ1
Displacement183 in³
Power Measured @2,200 rpm
Net Power101.0 hp
AspirationTurbocharged and charged air cooled
Alternator50 A
Emission Tier LevelEPA Final Tier 4
Battery2
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Implement - Operating Pressure4,980 psi
Travel - Operating Pressure4,980 psi
ControlsPilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever

Dimensions

Dimensions specifications
Overall Height133 in
Track Gauge88 in
Counterweight Clearance41 in
Undercarriage Overall Length166 in
Cab height12 in
Center to center - idler to sprocket133 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Number of Shoes per Side46
Number of Carrier Rollers per Side2
Drawbar Pull17,250 lb
Track AdjustmentHydraulic

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth260 in
Max Reach Along Ground366 in
Max Vertical Wall Digging Depth220 in
Max Cutting Height361 in
Minimum swing radius12 in
Max.Dumping Height260 in
Bucket Digging Force - SAE25,180 lb
Bucket Digging Force - ISO28,552 lb
Arm Digging Force - ISO21,358 lb
Arm Digging Force - SAE20,459 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth278 in
Max Vertical Wall Digging Depth248 in
Max Cutting Height385 in
Max Reach Along Ground385 in
Minimum swing radius12 in
Max.Dumping Height275 in
Bucket Digging Force - SAE25,180 lb
Bucket Digging Force - ISO28,552 lb
Arm Digging Force - SAE18,210 lb
Arm Digging Force - ISO18,885 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Overall height133 in

Performance

Performance specifications
Travel speed low2.2 mph
Travel Speed - High3.3 mph
