Hitachi

ZX190W-6

Excavator

Operating Weight
43,431 lb
Max Digging Depth
230 in
Net Power
164.0 hp
All excavators

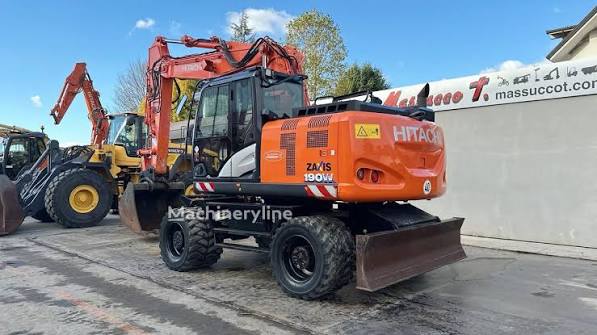

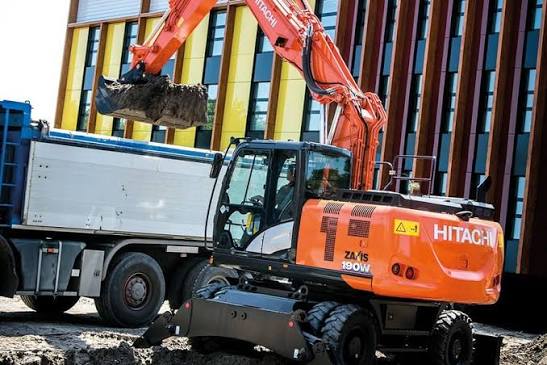

Hitachi ZX190W-6 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,431 lb
Fuel Capacity76.7 gal
Hydraulic Pump Flow Capacity62.4 gal/min
Hydraulic Pump Type2 variable displacement axial piston pumps

Engine

Engine specifications
Engine Model4HK1
Displacement317 in³
Power Measured @2,000 rpm
Net Power164.0 hp
Number of Cylinders4
AspirationTurbocharged intercooled
Torque Measured @1,800 rpm
Engine MakeIsuzu
Net Torque483 lb-ft

Hydraulic System

Hydraulic System specifications
Implement722 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase104 in
Overall Width108 in
Tail Swing Radius93 in

Transmission

Transmission specifications
Drawbar Pull21,020 lb

Fluid Capacities

Fluid Capacities specifications
Front axle580 in³
Rear Axle3.7 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth230 in
Max Reach Along Ground378 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed115 rpm
Swing Torque39,090 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth230 in
Max Cutting Height365 in
Max Vertical Wall Dig Depth207 in
Max Dumping Height254 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Cutting Height389 in
Max Reach Along Ground367 in
Max Vertical Wall Dig Depth199 in
Max Dumping Height275 in

Electrical System

Electrical System specifications
Batteries2 volts
Alternator rating50 Amp

Speeds

Speeds specifications
creep1.7 mph
