Hitachi
ZX225US-3
- Operating Weight
- 51,147 lb
- Max Digging Depth
- 245 in
- Max Digging Depth
- 264 in
- Net Power
- 164.0 hp
1 / 5

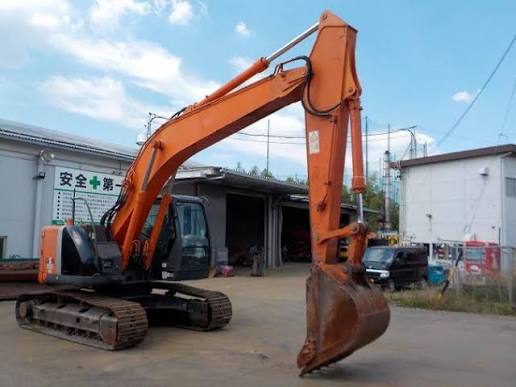

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 51,147 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 112.1 gal/min |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.9 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AI-4HK1X |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 164.0 hp |
| Aspiration | Turbocharged & Intercooled |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 483 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 39 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 245 in |
|---|---|
| Max Reach Along Ground | 367 in |
| Max Loading Height | 301 in |
| Max Vertical Wall Digging Depth | 206 in |
| Max Cutting Height | 417 in |
| Shipping Length of Unit | 356 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 433 in |
| Max Loading Height | 318 in |
| Max Reach Along Ground | 388 in |
| Shipping Length of Unit | 352 in |
| Shipping Height of Unit | 118 in |
