Hitachi

ZX225USR-3

Excavator

Operating Weight
50,706 lb
Max Digging Depth
244 in
Max Digging Depth
263 in
Net Power
163.7 hp
All excavators

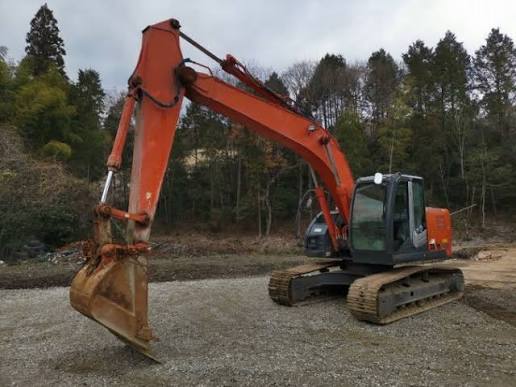

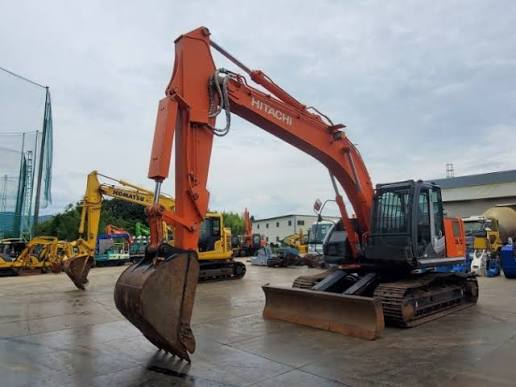

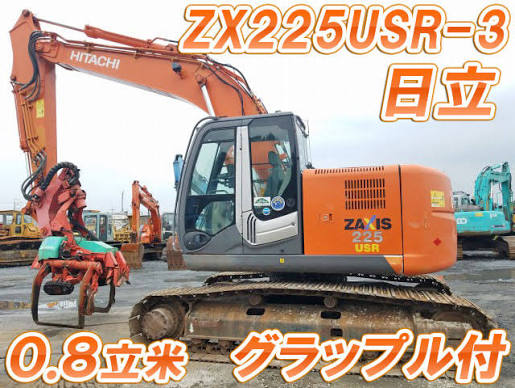

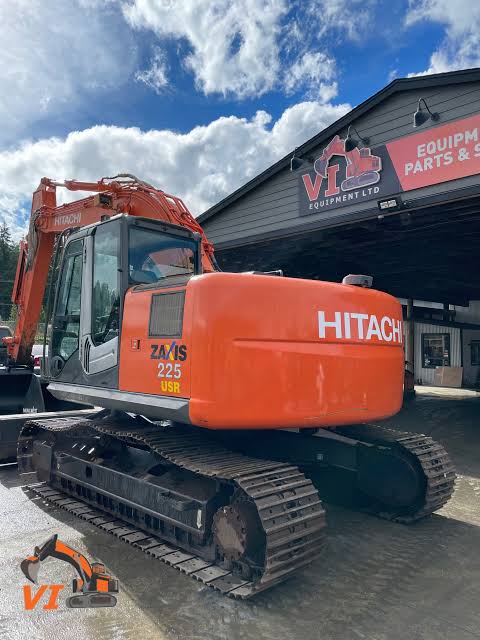

Hitachi ZX225USR-3 Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,706 lb
Fuel Capacity84.6 gal
Hydraulic Pump Flow Capacity112.1 gal/min
Hydraulic System Fluid Capacity60.8 gal
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity6.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.9 gal

Engine

Engine specifications
Engine ModelAI-4HK1X
Power Measured @2,000 rpm
Net Power163.7 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque483 lb-ft
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Length of Track on Ground176 in
Tail Swing Radius79 in
Width to Outside of Tracks113 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge88 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size32 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth244 in
Max Reach Along Ground365 in
Max Loading Height270 in
Max Vertical Wall Digging Depth209 in
Max Cutting Height381 in
Shipping Length of Unit353 in
Shipping Height of Unit126 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth263 in
Max Vertical Wall Digging Depth236 in
Max Cutting Height396 in
Max Loading Height283 in
Max Reach Along Ground384 in
Shipping Length of Unit349 in
Shipping Height of Unit117 in
