Hitachi

ZX240LC-3

Excavator

Operating Weight
54,654 lb
Max Digging Depth
270 in
Max Digging Depth
295 in
Net Power
177.0 hp
All excavators

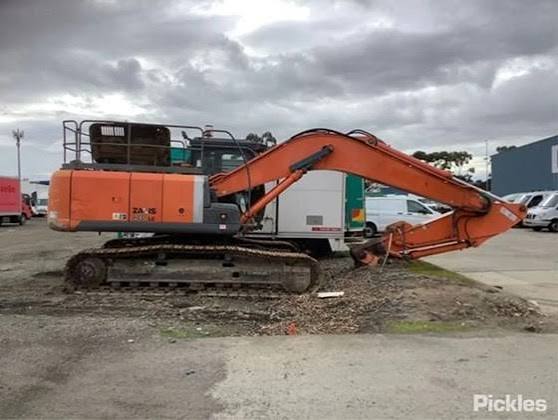

Hitachi ZX240LC-3 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,654 lb
Fuel Capacity132.1 gal
Hydraulic Pump Flow Capacity118.4 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity6.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.9 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-4HK1XYSA-01
Displacement317 in³
Power Measured @2,000 rpm
Net Power177.0 hp
AspirationTurbocharged intercooled

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab120 in
Length of Track on Ground151 in
Tail Swing Radius117 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance43 in
Digging Reach420 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size32 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull49,920 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth270 in
Max Reach Along Ground394 in
Max Loading Height282 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height400 in
Shipping Length of Unit401 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth295 in
Max Vertical Wall Digging Depth261 in
Max Cutting Height415 in
Max Loading Height298 in
Max Reach Along Ground420 in
Shipping Length of Unit402 in
Shipping Height of Unit125 in
