Hitachi

ZX250H-3

Excavator

Operating Weight
54,454 lb
Net Power
177.0 hp
All excavators
Hitachi ZX250H-3 Excavator
1 / 5

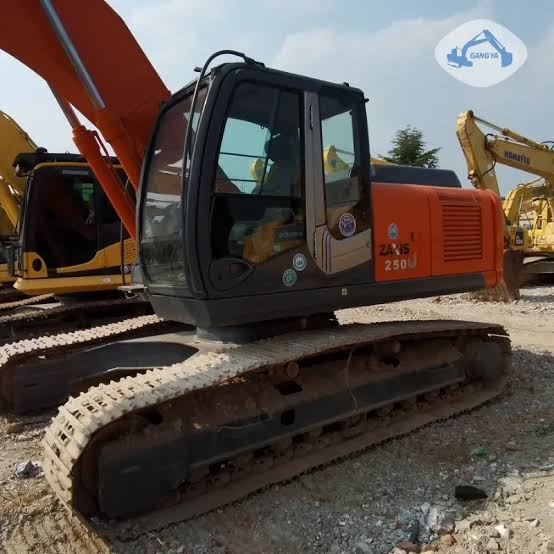

Image 1 of 5
Image: hitachicm.com.cn

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,454 lb
Fuel Capacity132.1 gal
Hydraulic Pump Flow Capacity59.2 gal/min
Hydraulic System Fluid Capacity74.0 gal
Engine Oil Capacity6.1 gal
Cooling System Fluid Capacity6.9 gal
Operating Voltage12 V
Swing Drive Fluid Capacity2.5 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelAH-4HK1X
Displacement317 in³
Net Power177.0 hp
Max Torque496 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab66 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side47
Drawbar Pull49,908 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm
