Hitachi
JCB

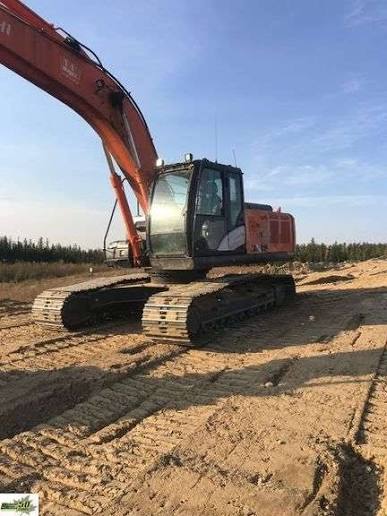

JS240L
Excavator
13 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 54,498 lb |
|---|---|
| Fuel Capacity | 132.0 gal |
| Hydraulic System Fluid Capacity | 63.0 gal |
| Engine Oil Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Swing Drive Fluid Capacity | 1.9 gal |
Engine
| Engine Model | 4HKIZXSA-01 |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 188.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 125 in |
| Tail Swing Radius | 121 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Number of Track Rollers per Side | 9 |
|---|---|
| Max Travel Speed | 3.4 mph |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 49,935 lb |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
