Hitachi

ZX250LC-6

Excavator

Operating Weight
55,689 lb
Max Digging Depth
257 in
Max Digging Depth
275 in
Net Power
177.0 hp
All excavators

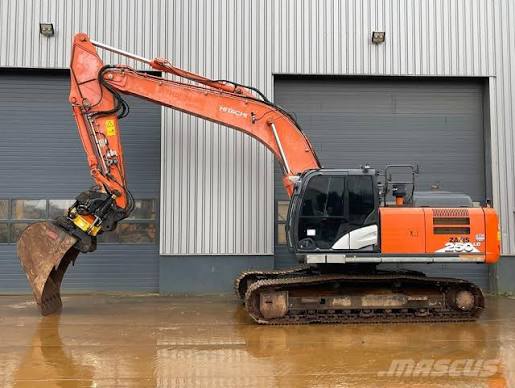

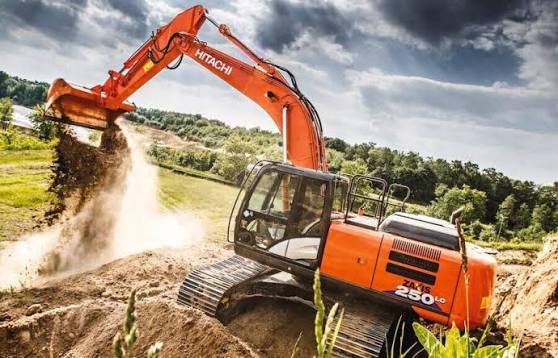

Hitachi ZX250LC-6 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

85 data points

Operating Specifications

Operating Specifications specifications
Operating Weight55,689 lb

Engine

Engine specifications
Engine ModelIsuzu 4HK1
Displacement317 in³
Power Measured @2,000 rpm
Net Power177.0 hp
AspirationTurbocharged air-to-air charge-air cooler
Engine MakeIsuzu
Cooling systemHigh efficiency direct-driven suction-type fan
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Main pump - Maximum flow59.2 gal
Hydraulic System TypeOpen center load sensing
Implement - Operating Pressure4,975 psi
Travel - Operating Pressure5,076 psi
ControlsPilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Main pump type2 variable-displacement pumps

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab120 in
Length of Track on Ground413 in
Tail Swing Radius125 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull48,334 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank134.8 gal
Hydraulic system76.7 gal
Cooling system9.0 gal
Hydraulic Tank41.3 gal
Engine oil with filter6.9 gal
Diesel exhaust fluid (DEF) tank18.5 gal
Swing drive2.5 gal
Propel2.1 gal
Pump Drive0.3 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth257 in
Max Reach Along Ground381 in
Max Loading Height276 in
Max Vertical Wall Digging Depth221 in
Max Cutting Height393 in
Shipping Length of Unit413 in
Shipping Height of Unit133 in
Bucket Digging Force - SAE36,869 lb
Bucket Digging Force - ISO42,489 lb
Arm Digging Force - ISO35,520 lb
Arm Digging Force - SAE34,621 lb

Bucket

Bucket specifications
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth275 in
Max Vertical Wall Digging Depth238 in
Max Cutting Height401 in
Max Loading Height284 in
Max Reach Along Ground398 in
Shipping Length of Unit408 in
Shipping Height of Unit121 in
Bucket Digging Force - SAE36,869 lb
Bucket Digging Force - ISO42,489 lb
Arm Digging Force - SAE28,326 lb
Arm Digging Force - ISO29,450 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth300 in
Max Cutting Height417 in
Max Loading Height299 in
Max Vertical Wall Digging Depth267 in
Max Reach Along Ground424 in
Shipping Length of Unit410 in
Shipping Height of Unit125 in
Bucket Digging Force - SAE36,869 lb
Bucket Digging Force - ISO42,489 lb
Arm Digging Force - SAE24,504 lb

Electrical System

Electrical System specifications
Batteries2 x 12 V volts
Battery capacity—
Alternator rating50 amp
Work Lights2 halogen

Cylinders

Cylinders specifications
Bore (Boom)5 in
Bore (Bucket)5 in
Stroke (Bucket)42 in
Bore (Arm)6 in
Stroke (Arm)63 in
Stroke (Boom)55 in
Rod Diameter (Arm)4 in
Rod Diameter (Boom)4 in
Rod Diameter (Bucket)4 in
