PC20R-8
Mini Excavator
47 specifications
1 / 5

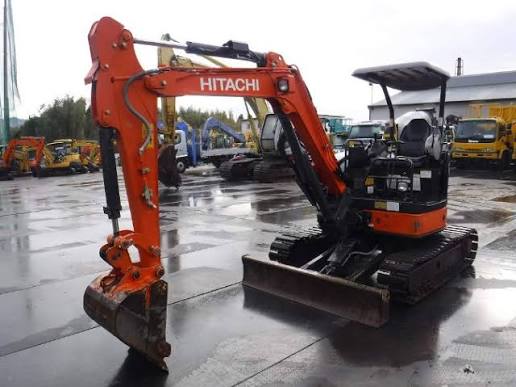

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Fuel Capacity | 10.6 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 21.2 gal/min |
| Hydraulic System Fluid Capacity | 8.5 gal |
| Alternator Supplied Amperage | 55 A |
| Engine Oil Capacity | 2.0 gal |
| Cooling System Fluid Capacity | 1.4 gal |
Engine
| Engine Model | HITACHI ZX 35 U-3 |
|---|---|
| Displacement | 98 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 28.6 hp |
| Number of Cylinders | 3 |
| Make | Yanmar |
| Emission Tier Level | Interim Tier 4 |
Weights
| Operating Weight | 7,760 lb |
|---|
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 100 in |
| Length of Track on Ground | 66 in |
| Tail Swing Radius | 35 in |
| Width to Outside of Tracks | 70 in |
| Removal Counterweight Clearance | 23 in |
| Width Over Tracks | 70 in |
| Digging Depth | 120 in |
| Digging Reach | 204 in |
| Track Gauge | 57 in |
| Undercarriage Overall Length | 84 in |
| Transport Height- Minimum | 98 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Max Travel Speed | 2.8 mph |
| Shoe Size | 12 in |
| Number of Carrier Rollers per Side | 1 |
Fluid Capacities
| Fuel Tank | 10.6 gal |
|---|---|
| Hydraulic Tank | 8.5 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 121 in |
|---|---|
| Max Reach Along Ground | 205 in |
| Max Loading Height | 131 in |
| Shipping Length of Unit | 183 in |
| Max Cutting Height | 186 in |
| Shipping Height of Unit | 100 in |
| Max.Dumping Height | 137 in |
| Max Digging Height | 192 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 137 in |
|---|---|
| Max Cutting Height | 189 in |
| Max Loading Height | 134 in |
| Max Reach Along Ground | 219 in |
| Shipping Height of Unit | 100 in |
| Shipping Length of Unit | 189 in |
