Hitachi

ZX35U-5

Mini Excavator

Operating Weight
7,760 lb
Max Digging Depth
120 in
Net Power
23.4 hp
All mini excavators

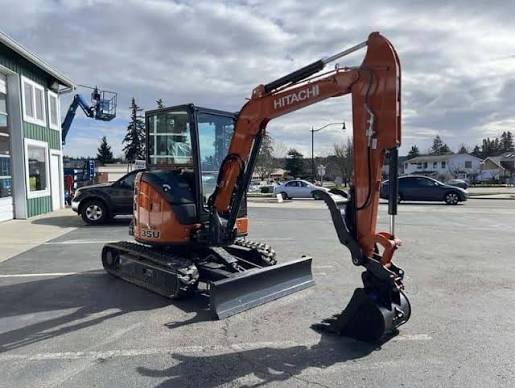

Hitachi ZX35U-5 Mini Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,760 lb
Blade height15 in

Engine

Engine specifications
Engine Model3TNV74F
Displacement100 in³
Power Measured @2,400 rpm
Net Power23.4 hp
Alternator55 A
Emission Tier LevelEPA Final Tier 4

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow16.2 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Tail Swing Radius35 in
Track Width12 in
Counterweight Clearance23 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank11.1 gal
Hydraulic Tank8.5 gal
Cooling system1.4 gal
Engine oil with filter2.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth120 in
Max Reach Along Ground205 in
Max Cutting Height192 in
Max.Dumping Height137 in
Max Digging Reach205 in
Minimum swing radius82 in

Bucket

Bucket specifications
Bucket digging Force - SAE4,271 lb
Arm digging Force6,092 lb

Boom

Boom specifications
Boom swing left72 °
Boom swing right62 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Blades

Blades specifications
Maximum Drop below ground17 in
Maximum Lift Above Ground15 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth137 in
Max Cutting Height196 in
Max.Dumping Height143 in
Max Digging Reach217 in
Minimum swing radius86 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth120 in
Max Cutting Height186 in

Performance

Performance specifications
Travel speed low1.8 mph
Travel Speed - High2.7 mph
