8010 CTS

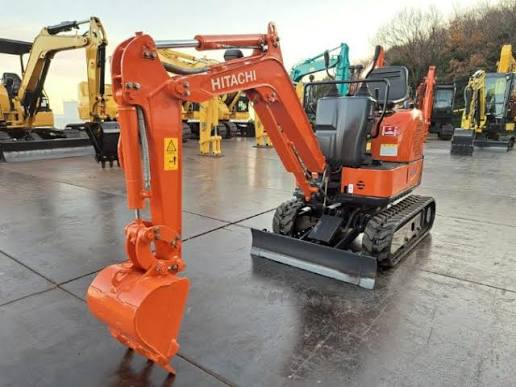

Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 2,425 lb |
|---|---|
| Fuel Capacity | 4.3 gal |
| Hydraulic Pump Flow Capacity | 5.7 gal/min |
| Hydraulic System Fluid Capacity | 4.8 gal |
| Hydraulic System Relief Valve Pressure | 2,567 psi |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 0.8 gal |
| Cooling System Fluid Capacity | 0.9 gal |
Engine
| Engine Model | 3TNV70 |
|---|---|
| Displacement | 52 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 12.8 hp |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 37 lb-ft |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Height - Top of Cab | 85 in |
| Length of Track on Ground | 36 in |
| Tail Swing Radius | 43 in |
| Width to Outside of Tracks | 36 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 29 in |
| Number of Track Rollers per Side | 2 |
| Max Travel Speed | 2.5 mph |
| Shoe Size | 7 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 64 in |
|---|---|
| Max Vertical Wall Digging Depth | 57 in |
| Max Loading Height | 81 in |
| Shipping Length of Unit | 118 in |
| Max Cutting Height | 113 in |
| Shipping Height of Unit | 85 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 72 in |
|---|---|
| Max Cutting Height | 117 in |
| Max Loading Height | 85 in |
| Max Vertical Wall Digging Depth | 64 in |
| Shipping Height of Unit | 85 in |
| Shipping Length of Unit | 120 in |
