Hyundai

HL740-7A

Wheel Loader

Operating Weight
25,463 lb
Bucket Capacity - heaped
2.80 yd³
Gross Power
138.0 hp
Net Power
145.0 hp
All wheel loaders

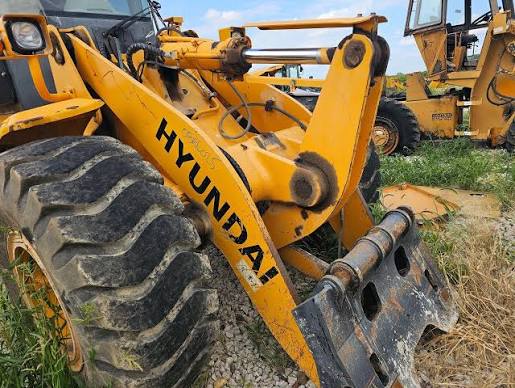

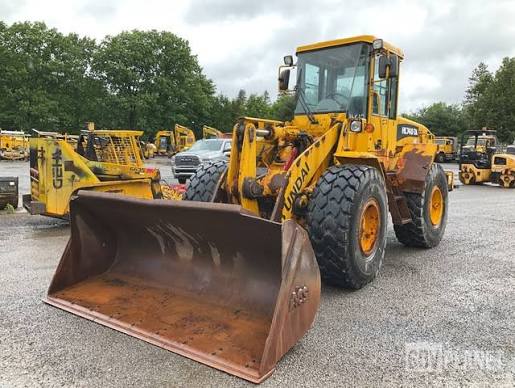

Hyundai HL740-7A Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,463 lb
Fuel Capacity60.3 gal
Tire Size20.5-25 16 PR L3
Hydraulic System Fluid Capacity43.6 gal
Operating Voltage24 V
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity5.7 gal
Rear Axle/Diff Fluid Capacity5.7 gal
Cooling System Fluid Capacity9.3 gal
Transmission Fluid Capacity6.4 gal
Rated Bucket Capacity2.69 yd³

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,100 rpm
Gross Power138.0 hp
Net Power145.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Engine MakeCUMMINS
MakeCummins
Stroke5 in
Bore4 in
Air cleanerDry dual elements

Weights

Weights specifications
Operating Weight25,460 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity47.3 gal/min
Raise Time5.6 s
Lower Time2.8 s
Dump Time1.8 s
Pump TypeOpen-centered

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab128 in
Wheelbase115 in
Reach at Max Lift and Dump383 in
Length with Bucket on Ground287 in

Transmission

Transmission specifications
Max Speed - Forward22.6 mph
Max Speed - Reverse14.5 mph
Transmission Type3-elements single-stage
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.80 yd³
Bucket Capacity - struck2.39 yd³
Dump Clearance at Max Raise113 in
Breakout Force20,240 lb
