Hyundai

HL740XTD-7

Wheel Loader

Operating Weight
26,120 lb
Bucket Capacity - heaped
3.60 yd³
Gross Power
133.0 hp
Net Power
140.0 hp
All wheel loaders

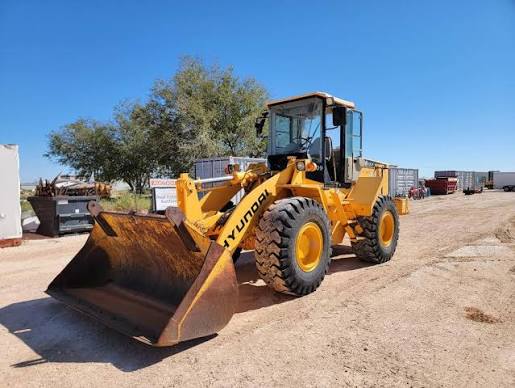

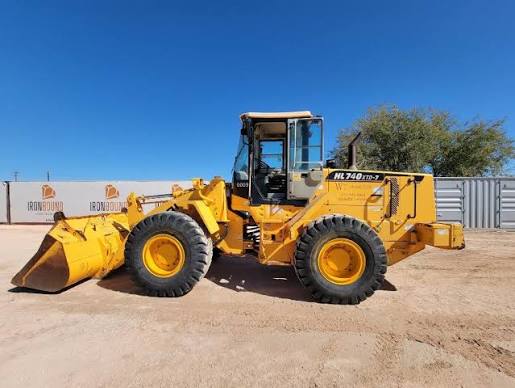

Hyundai HL740XTD-7 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,120 lb
Fuel Capacity60.3 gal
Tire Size20.5-25 16 PR L3
Hydraulic System Fluid Capacity43.6 gal
Static Tipping Weight18,340 lb
Operating Voltage24 V
Engine Oil Fluid Capacity4.3 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity5.7 gal
Rear Axle/Diff Fluid Capacity5.7 gal
Cooling System Fluid Capacity9.3 gal
Transmission Fluid Capacity6.4 gal

Engine

Engine specifications
Engine ModelQSB5.9-C
Displacement360 in³
Power Measured @2,200 rpm
Gross Power133.0 hp
Net Power140.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity46.8 gal/min
Raise Time5.5 s
Lower Time2.8 s
Dump Time1.4 s
Relief Valve Setting3,130 psi
Pump Typeopen-centered tandem circuit system

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab128 in
Wheelbase115 in
Width Over Tires101 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground306 in
Hinge Pin - Max Height168 in

Transmission

Transmission specifications
Max Speed - Forward23.8 mph
Max Speed - Reverse15.8 mph
Transmission Type3-elements single-stage single-phase
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.60 yd³
Bucket Capacity - struck3.10 yd³
Dump Clearance at Max Raise130 in
Breakout Force25,860 lb
Bucket Width101 in
