Hyundai

HSL240T

Skid Steer Loader

Operating Weight
2,200 lb
Max Speed
3.2 mph
Gross Power
25.0 hp
All skid steer loaders

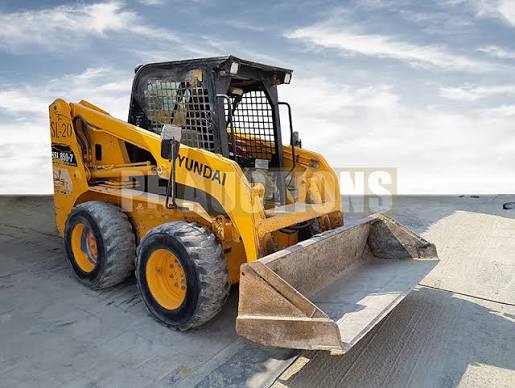

Hyundai HSL240T Skid Steer Loader
1 / 5
Image 1 of 5
Image: tvh.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,200 lb
Max Speed3.2 mph
Max Speed - low range3.2 mph
Fuel Capacity2.2 gal
Hydraulic System Fluid Capacity11.6 gal

Engine

Engine specifications
Engine ModelCH25
Power Measured @3,600 rpm
Gross Power25.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.6 gal/min
Relief Valve Pressure3,000 psi
Pump Flow8.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab52 in
Wheelbase28 in
Width Over Tires43 in
Reach at Max Lift and Dump11 in
Width Over Tracks43 in
Length with Bucket80 in
Clearance at Max Lift and Dump43 in
Turning Radius from Center - inc bucket47 in
Turning Radius from Center - machine rear36 in
Length w/o Bucket61 in
Length - without Bucket61 in

Loader

Loader specifications
Operating Load Rating370 lb
Tipping Angle1,058 °
