Hyundai
HX220L
- Operating Weight
- 52,117 lb
- Max Digging Depth
- 229 in
- Max Digging Depth
- 246 in
- Net Power
- 173.0 hp
1 / 5

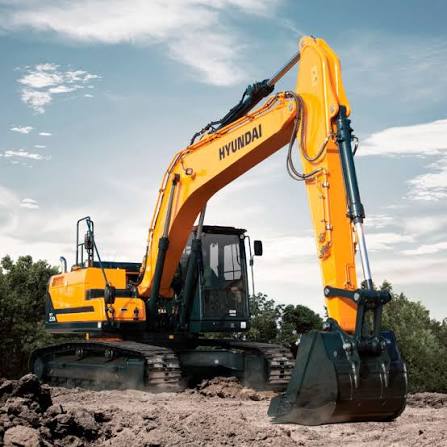

Image 1 of 5
Specifications
60 data points
Operating Specifications
| Operating Weight | 52,117 lb |
|---|---|
| Fuel Capacity | 105.7 gal |
| Hydraulic Pump Flow Capacity | 58.6 gal/min |
| Hydraulic System Fluid Capacity | 72.7 gal |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 182.6 hp |
| Net Power | 173.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 620 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 175 in |
| Tail Swing Radius | 113 in |
| Width to Outside of Tracks | 108 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 36 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 44,530 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 229 in |
|---|---|
| Max Reach Along Ground | 353 in |
| Max Loading Height | 250 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 360 in |
| Shipping Length of Unit | 380 in |
| Shipping Height of Unit | 126 in |
Bucket
| Maximum Bucket Capacity | 1.20 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 246 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 369 in |
| Max Loading Height | 257 in |
| Max Reach Along Ground | 369 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 124 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 265 in |
|---|---|
| Max Cutting Height | 378 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Digging Depth | 248 in |
| Max Reach Along Ground | 388 in |
| Shipping Length of Unit | 376 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 305 in |
|---|---|
| Max Cutting Height | 398 in |
| Max Reach Along Ground | 425 in |
| Max Loading Height | 288 in |
| Max Vertical Wall Dig Depth | 285 in |
| Shipping Length of Unit | 376 in |
