Hyundai
JCB
JS240L
Excavator
13 specifications

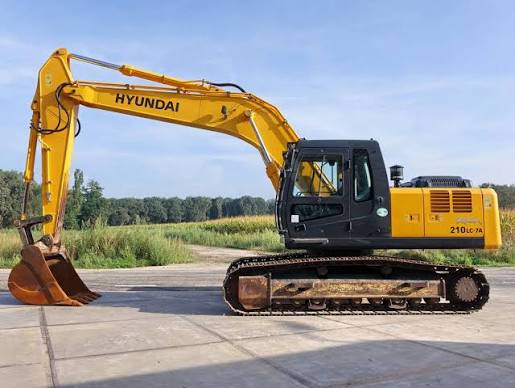

Hyundai
ROBEX 210LC-7A
- Operating Weight
- 47,800 lb
- Max Digging Depth
- 229 in
- Max Digging Depth
- 246 in
- Net Power
- 143.0 hp
1 / 5
Image 1 of 5
Specifications
58 data points
Operating Specifications
| Operating Weight | 47,800 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Hydraulic Pump Flow Capacity | 58.1 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Gross Power | 151.0 hp |
| Net Power | 143.0 hp |
| Aspiration | Turbocharged and Charge air cooled |
| Max Torque | 456 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 111 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 229 in |
|---|---|
| Max Reach Along Ground | 353 in |
| Max Loading Height | 250 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 360 in |
| Shipping Length of Unit | 380 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 246 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 369 in |
| Max Loading Height | 257 in |
| Max Reach Along Ground | 369 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 124 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 267 in |
|---|---|
| Max Cutting Height | 373 in |
| Max Loading Height | 263 in |
| Max Vertical Wall Digging Depth | 267 in |
| Max Reach Along Ground | 385 in |
| Shipping Length of Unit | 376 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 305 in |
|---|---|
| Max Cutting Height | 398 in |
| Max Reach Along Ground | 425 in |
| Max Loading Height | 288 in |
| Max Vertical Wall Dig Depth | 285 in |
| Shipping Length of Unit | 376 in |
