Hyundai

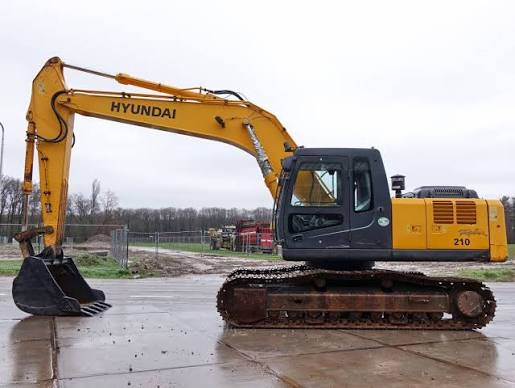

ROBEX 210LC-7A High Chassis
- Operating Weight
- 51,060 lb
- Max Digging Depth
- 222 in
- Max Digging Depth
- 238 in
- Net Power
- 143.0 hp
1 / 5
Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 51,060 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Hydraulic Pump Flow Capacity | 58.1 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 151.0 hp |
| Net Power | 143.0 hp |
| Aspiration | Turbocharged and Charge air cooled |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 456 lb-ft |
Dimensions
| Ground Clearance | 26 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 111 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 50 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 110 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 47,435 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 222 in |
|---|---|
| Max Reach Along Ground | 352 in |
| Max Loading Height | 257 in |
| Max Vertical Wall Digging Depth | 200 in |
| Max Cutting Height | 369 in |
| Shipping Length of Unit | 380 in |
| Shipping Height of Unit | 131 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 238 in |
|---|---|
| Max Vertical Wall Digging Depth | 219 in |
| Max Cutting Height | 376 in |
| Max Loading Height | 265 in |
| Max Reach Along Ground | 366 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 127 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 258 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 234 in |
| Max Reach Along Ground | 384 in |
| Shipping Length of Unit | 373 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 298 in |
|---|---|
| Max Cutting Height | 406 in |
| Max Reach Along Ground | 424 in |
| Max Loading Height | 295 in |
| Max Vertical Wall Dig Depth | 278 in |
| Shipping Length of Unit | 377 in |
