Hyundai

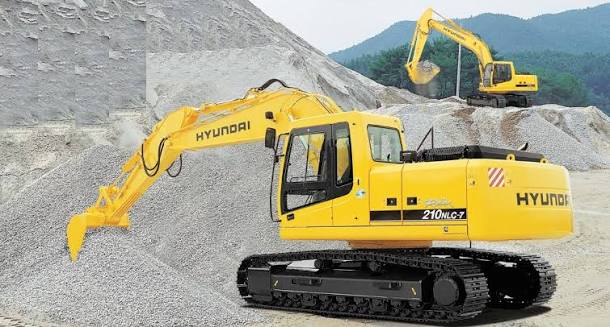

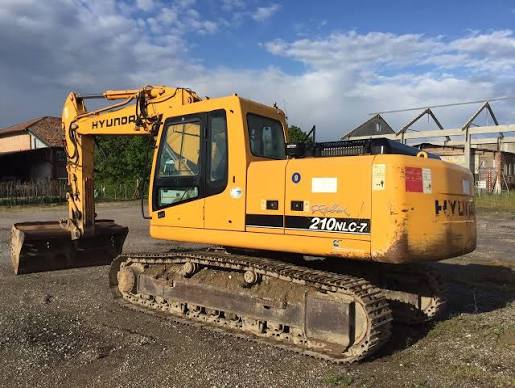

ROBEX 210NLC-7
- Operating Weight
- 54,000 lb
- Max Digging Depth
- 227 in
- Max Digging Depth
- 243 in
- Net Power
- 143.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 54,000 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Hydraulic Pump Flow Capacity | 116.3 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | B5.9-C |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 150.0 hp |
| Net Power | 143.0 hp |
| Aspiration | Turbocharged and Charge air cooled |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 453 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 110 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 47,435 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 227 in |
|---|---|
| Max Reach Along Ground | 353 in |
| Max Loading Height | 254 in |
| Max Vertical Wall Digging Depth | 210 in |
| Max Cutting Height | 366 in |
| Shipping Length of Unit | 380 in |
| Shipping Height of Unit | 128 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 243 in |
|---|---|
| Max Vertical Wall Digging Depth | 228 in |
| Max Cutting Height | 374 in |
| Max Loading Height | 263 in |
| Max Reach Along Ground | 369 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 126 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 263 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 244 in |
| Max Reach Along Ground | 386 in |
| Shipping Length of Unit | 376 in |
| Shipping Height of Unit | 121 in |
