Hyundai

ROBEX 250LC-3

Excavator

Operating Weight
54,234 lb
Max Digging Depth
239 in
Max Digging Depth
254 in
Net Power
161.0 hp
All excavators

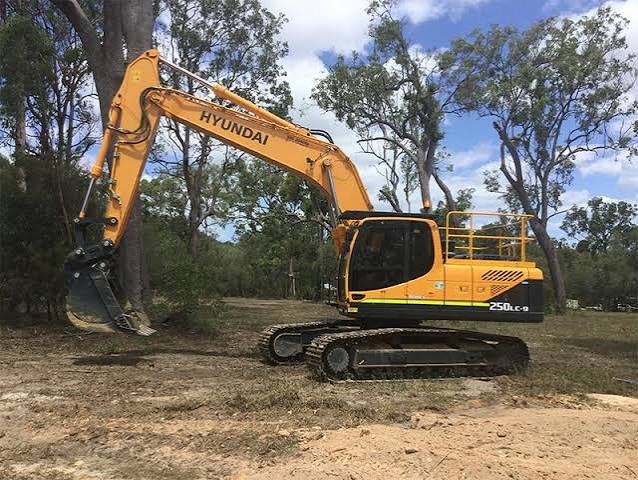

Hyundai ROBEX 250LC-3 Excavator
1 / 5
Image 1 of 5
Image: machineryline.co.ug

Specifications

73 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,234 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity60.8 gal/min
Hydraulic System Fluid Capacity89.9 gal
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB5.9-C
Displacement359 in³
Power Measured @2,200 rpm
Gross Power174.0 hp
Net Power161.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque590 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground183 in
Tail Swing Radius117 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge102 in
Number of Track Rollers per Side10
Max Travel Speed3.3 mph
Shoe Size28 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull50,640 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth239 in
Max Reach Along Ground372 in
Max Loading Height254 in
Max Vertical Wall Digging Depth226 in
Max Cutting Height377 in
Shipping Length of Unit397 in
Shipping Height of Unit135 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth254 in
Max Vertical Wall Digging Depth233 in
Max Cutting Height379 in
Max Loading Height257 in
Max Reach Along Ground384 in
Shipping Length of Unit396 in
Shipping Height of Unit132 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height383 in
Max Loading Height261 in
Max Vertical Wall Digging Depth246 in
Max Reach Along Ground403 in
Shipping Length of Unit394 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth298 in
Max Cutting Height393 in
Max Reach Along Ground424 in
Max Loading Height272 in
Max Vertical Wall Dig Depth269 in
Shipping Length of Unit395 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth221 in
Max Reach Along Ground348 in
Max Cutting Height359 in
Max Loading Height236 in
Max Vertical Wall Dig Depth204 in
Shipping Height of Unit139 in
Shipping Length of Unit376 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth236 in
Max Reach Along Ground361 in
Max Cutting Height360 in
Max Loading Height239 in
Max Vertical Wall Dig Depth212 in
Shipping Length of Unit374 in
Shipping Height of Unit134 in
