Hyundai

ROBEX 36N-7

Mini Excavator

Operating Weight
7,981 lb
Max Digging Depth
124 in
Net Power
27.0 hp
All mini excavators

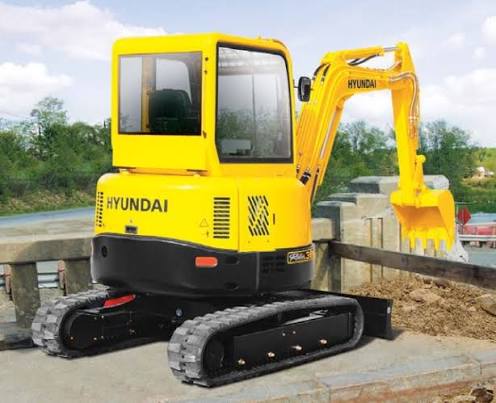

Hyundai ROBEX 36N-7 Mini Excavator
1 / 5
Image 1 of 5
Image: na.hd-hyundaice.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,981 lb
Fuel Capacity10.9 gal
Hydraulic Pump Flow Capacity28.9 gal/min
Hydraulic System Fluid Capacity11.1 gal
Hydraulic System Relief Valve Pressure2,990 psi
Engine Oil Capacity1.2 gal
Cooling System Fluid Capacity1.5 gal

Engine

Engine specifications
Engine ModelS3L2-Y131NSB
Displacement81 in³
Power Measured @2,400 rpm
Net Power27.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab98 in
Length of Track on Ground65 in
Tail Swing Radius36 in
Width to Outside of Tracks67 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge55 in
Max Travel Speed2.8 mph
Shoe Size12 in
Drawbar Pull7,210 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth124 in
Max Reach Along Ground207 in
Max Vertical Wall Digging Depth86 in
Max Loading Height127 in
Shipping Length of Unit185 in
Max Cutting Height183 in
Shipping Height of Unit98 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
