IHI

28N-2

Mini Excavator

Operating Weight
6,189 lb
Max Digging Depth
100 in
Net Power
21.1 hp
All mini excavators

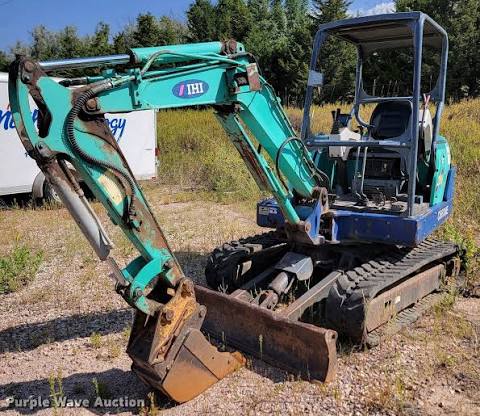

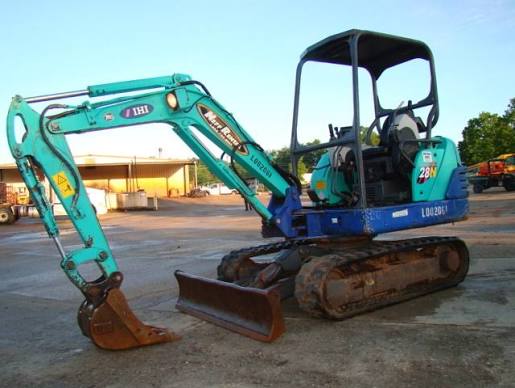

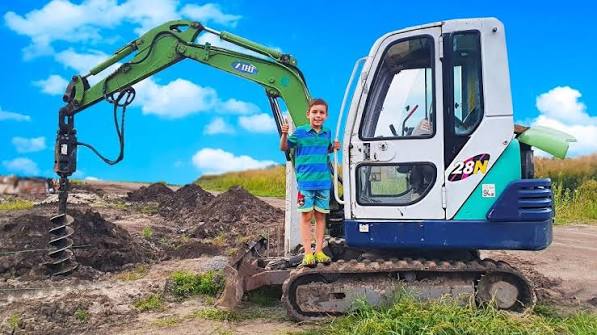

IHI 28N-2 Mini Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,189 lb
Fuel Capacity9.8 gal
Hydraulic Pump Flow Capacity20.3 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV76
Net Power21.1 hp

Dimensions

Dimensions specifications
Height - Top of Cab91 in
Tail Swing Radius50 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance12 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge48 in
Max Travel Speed2.8 mph
Shoe Size14 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth100 in
Max Vertical Wall Digging Depth78 in
Max Loading Height113 in
Shipping Length of Unit165 in
Max Cutting Height159 in
Shipping Height of Unit91 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
