IHI

30NX-2

Mini Excavator

Operating Weight
7,075 lb
Max Digging Depth
126 in
Net Power
23.9 hp
All mini excavators

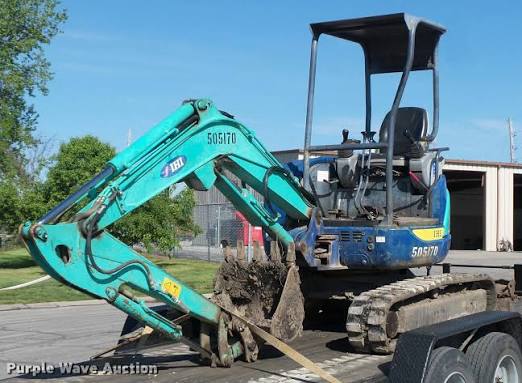

IHI 30NX-2 Mini Excavator
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,075 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity23.2 gal/min
Hydraulic System Relief Valve Pressure3,133 psi

Engine

Engine specifications
Engine Model3TNV84
Net Power23.9 hp

Dimensions

Dimensions specifications
Height - Top of Cab98 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge49 in
Max Travel Speed3.1 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth126 in
Max Vertical Wall Digging Depth102 in
Max Loading Height120 in
Shipping Length of Unit173 in
Max Cutting Height170 in
Shipping Height of Unit98 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
