IHI

35N-2

Mini Excavator

Operating Weight
7,759 lb
Max Digging Depth
125 in
Net Power
26.5 hp
All mini excavators

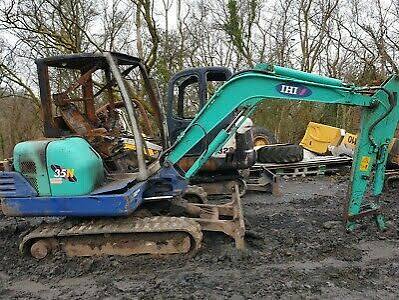

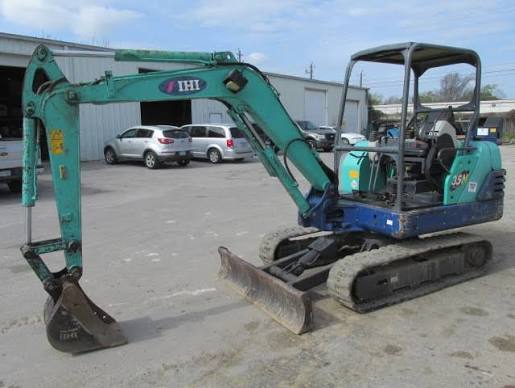

IHI 35N-2 Mini Excavator
1 / 5
Image 1 of 5
Image: tractorzoom.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,759 lb
Fuel Capacity9.8 gal
Hydraulic Pump Flow Capacity27.1 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV84
Net Power26.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab93 in
Tail Swing Radius50 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance13 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge48 in
Max Travel Speed3.0 mph
Shoe Size14 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth125 in
Max Vertical Wall Digging Depth96 in
Max Loading Height131 in
Shipping Length of Unit192 in
Max Cutting Height187 in
Shipping Height of Unit93 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
