IHI

35NX-2

Mini Excavator

Operating Weight
7,440 lb
Max Digging Depth
137 in
Net Power
26.5 hp
All mini excavators

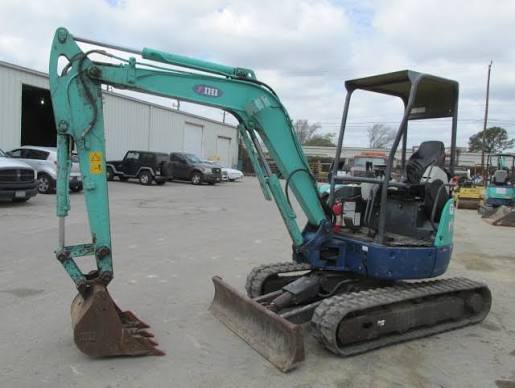

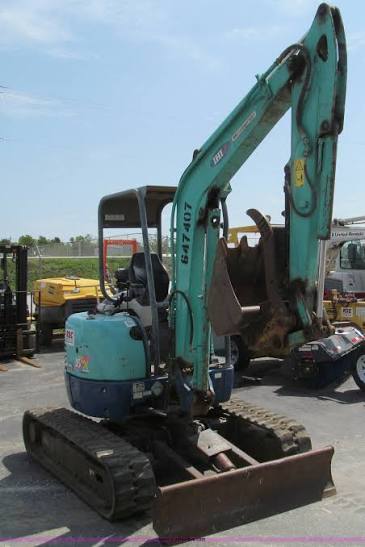

IHI 35NX-2 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,440 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity27.1 gal/min
Hydraulic System Relief Valve Pressure2,990 psi

Engine

Engine specifications
Engine Model3TNV84
Net Power26.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab97 in
Tail Swing Radius33 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge48 in
Max Travel Speed3.0 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth137 in
Max Vertical Wall Digging Depth117 in
Max Loading Height133 in
Shipping Length of Unit180 in
Max Cutting Height192 in
Shipping Height of Unit97 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
