IHI

35NXE-2

Mini Excavator

Operating Weight
7,440 lb
Max Digging Depth
157 in
Net Power
26.5 hp
All mini excavators

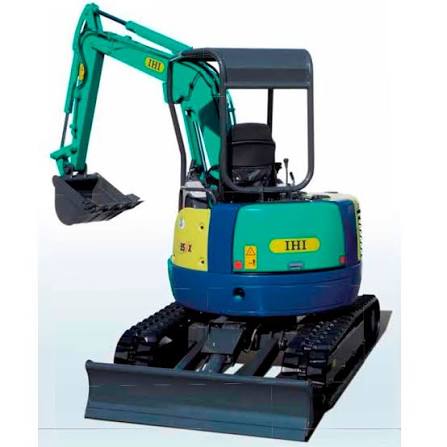

IHI 35NXE-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,440 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity27.1 gal/min
Hydraulic System Relief Valve Pressure2,990 psi

Engine

Engine specifications
Engine Model3TNV84
Net Power26.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab97 in
Tail Swing Radius33 in
Width to Outside of Tracks72 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge60 in
Max Travel Speed3.0 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth157 in
Max Vertical Wall Digging Depth124 in
Max Loading Height179 in
Shipping Length of Unit180 in
Max Cutting Height238 in
Shipping Height of Unit97 in
