IHI

9NX-2

Mini Excavator

Operating Weight
2,060 lb
Max Digging Depth
62 in
Net Power
10.0 hp
All mini excavators

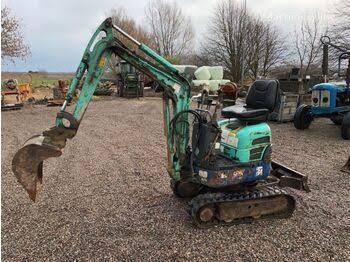

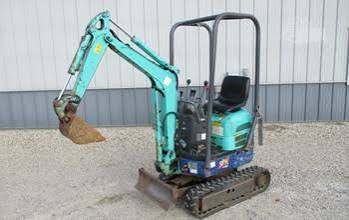

IHI 9NX-2 Mini Excavator
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,060 lb
Fuel Capacity2.2 gal
Hydraulic Pump Flow Capacity5.9 gal/min
Hydraulic System Relief Valve Pressure2,350 psi

Engine

Engine specifications
Engine Model2TNV70
Net Power10.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab83 in
Width to Outside of Tracks28 in
Removal Counterweight Clearance17 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge20 in
Max Travel Speed2.2 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth62 in
Max Vertical Wall Digging Depth47 in
Max Loading Height118 in
Shipping Length of Unit107 in
Max Cutting Height108 in
Shipping Height of Unit83 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
