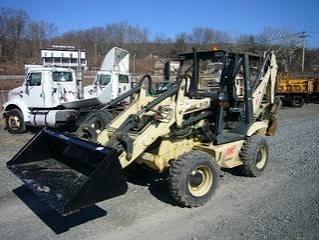

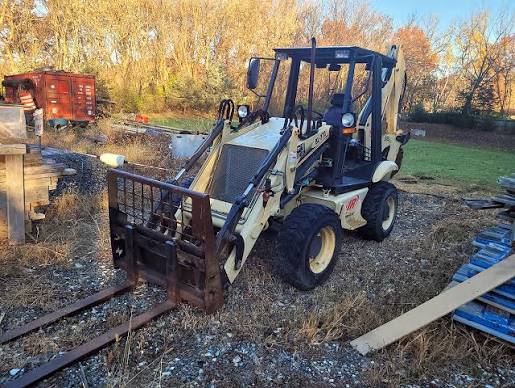

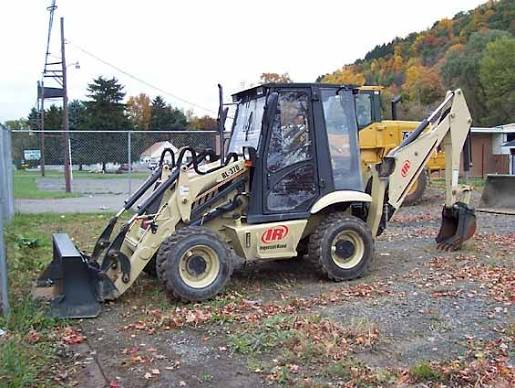

Ingersoll Rand
John Deere
302A
Backhoe Loader
42 specifications
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight 4wd | 9,259 lb |
|---|---|
| Operating Weight | 9,015 lb |
| Fuel Capacity | 25.1 gal |
| Tire Size Front - 2wd / 4wd | 12x16.5 |
| Turning Radius | 176 in |
Engine
| Gross Power | 46.0 hp |
|---|
Dimensions
| Wheelbase | 72 in |
|---|---|
| Transport Width | 74 in |
| Transport Length | 231 in |
| Height to Top of Suspended Cab | 93 in |
Transmission
| Max Speed | 10.9 mph |
|---|---|
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
| Transmission Type | Hydrostatic |
Backhoe
| Max Digging Depth | 118 in |
|---|---|
| Dig Depth | 133 in |
| Reach From Swivel | 167 in |
| Bucket Dig Force | 15,038 lb |
| Load Height | 110 in |
| Loading Height | 88 in |
Loader
| Bucket Capacity | 0.71 yd³ |
|---|---|
| Lift Capacity | 3,200 lb |
| Clearance at Max Dump Height | 81 in |
| Bucket Breakout Force | 1,895,140 lb |
| Bucket Width | 74 in |
| Reach at Max Dump Height | 17 in |
| Dig Depth | 3 in |
| SAE - Net | 46.0 hp |
| Breakout Force | — |
Travel Speed
| 4th Gear Fwd | 9.0 mph |
|---|
