International

1480

Combine

Operating Weight w/o Attachment
22,575 lb
Fuel Capacity
125.0 gal
Displacement
436 in³
Power
190.5 hp
All combines/harvesters

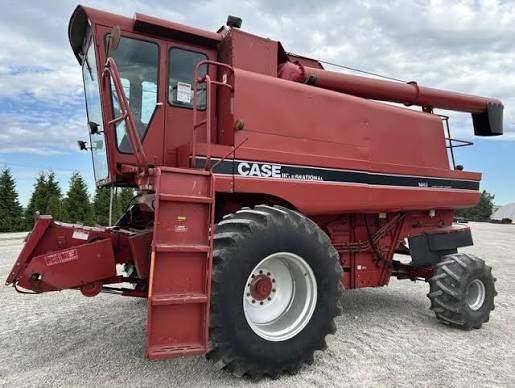

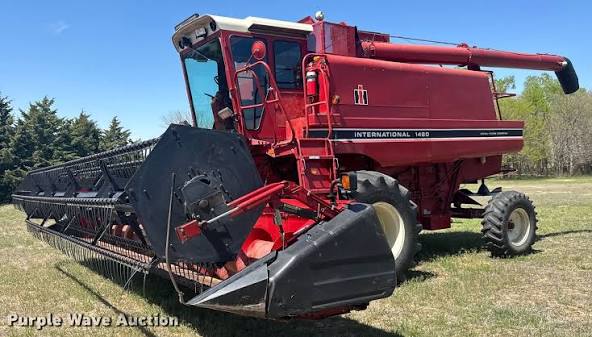

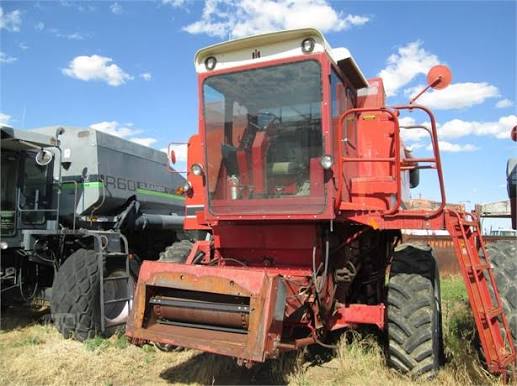

International 1480 Combine
1 / 5
Image 1 of 5
Image: tractorpartsasap.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment22,575 lb
Fuel Capacity125.0 gal

Engine

Engine specifications
Engine ModelDT-436
Displacement436 in³
Power Measured @2,500 rpm
Number of Cylinders6
Engine MakeInternational
Power190.5 hp

Dimensions

Dimensions specifications
Wheelbase141 in
Transport Width180,512 in
Transport Height159 in
Transport Length346 in
Unloader clearance143,701 in
Unloader reach76,576 in

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size11.00 x 16
Front Tires Size28 L x 26

Cleaning System

Cleaning System specifications
Cleaning Fan Speed - High1,160 rpm
Cleaning Fan Speed - Low410 rpm

Grain Handling

Grain Handling specifications
Grain Tank Capacity1,918.6 gal
Unloading Discharge Height150,789 in

Separating

Separating specifications
Separating Area2,183 in³

Threshing

Threshing specifications
Rotor Diameter39 in
Rotor Length107 in
Rotor Speed - High1,050 rpm
Rotor Speed - Low280 rpm
Concave Area1,448 in³

HEADER

HEADER specifications
Width - Table151 in
Auger diameter20 in
HEADER TypeCentre feed
Conveyor speed9,360.0 mph
Lowering timeAdjustable
