JCB

250

Skid Steer Loader

Operating Weight
8,215 lb
Bucket Capacity
0.60 yd³
Gross Power
73.8 hp
All skid steer loaders

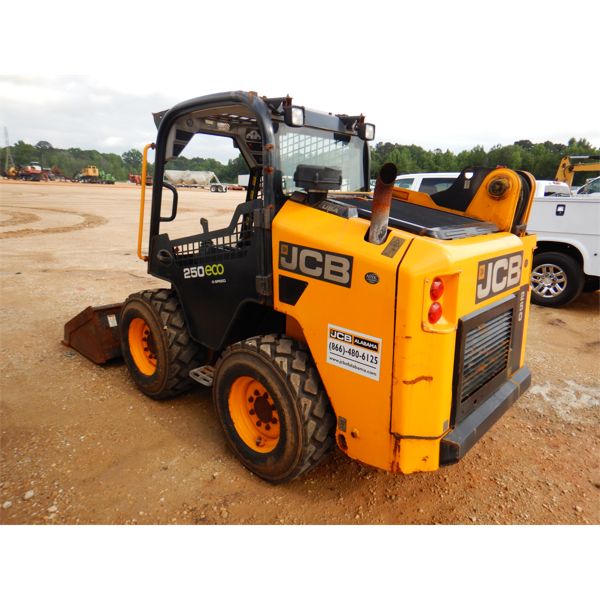

JCB 250 Skid Steer Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,215 lb

Engine

Engine specifications
Engine ModelEcoMAX TCAE-55
Displacement4,399 in³
Power Measured @2,400 rpm
Gross Power73.8 hp
AspirationTurbo
Torque Measured @1,200 rpm
Max Torque295 lb-ft
Alternator95 A
Emissions CertificationEPA-T4F (EU St3B)
Cooling systemDiesel
Battery12 V
FuelDiesel
Engine oil service interval500 h
Hydraulically driven cooling fanYes

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.8 gal/min
Relief Valve Pressure484 psi

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase50 in
Overall Length153 in
Width Over Tires71 in
Overall Height83 in
Dump Height91 in
Dump angle42 °
Angle of departure29 °
Loadover height114,174 in
Reach @ ground level44 in
Pin height126 in
Rollback - Ground Level30 °
Dig Depth394 in
Max. reach @ full height40 in
Bucket corner Turning radius91 in
Quick hitch Turning radius60 in
Rear chassis turning radius70 in

Transmission

Transmission specifications
Travel Speed12.0 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank27.3 gal
Hydraulic system14.6 gal
Engine Oil4.0 gal
Engine coolant5.9 gal

Tires & Wheels

Tires & Wheels specifications
Standard12 x 16.5 - 10 PR Xtra Wall Off Road

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55) Starting 2017 Model Year
Operating Width IN. (CM)72 (183) Starting 2017 Model Year
OPERATING LOAD LBS. (KG)2,250 (1,021) Starting 2017 Model Year

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating2,250 lb
Tipping Angle5,055 °
Operating Width72 in
Breakout Force—
Bucket Width78 in
Loader lift capacity with bucket5,884 lb
