JCBJCB
MIDI CX

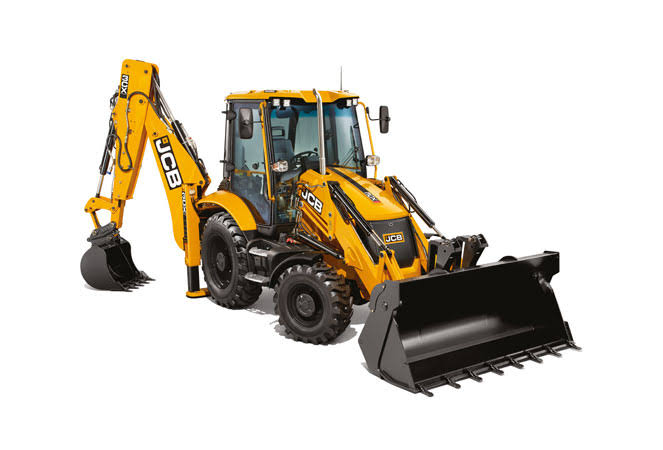

Backhoe Loader
24 specifications
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight 4wd | 14,586 lb |
|---|---|
| Operating Weight | 13,382 lb |
| Operating Weight 2wd | 14,278 lb |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 95 A |
| Transmission Fluid Capacity | 4.3 gal |
| Rear Axle Fluid Capacity | 4.3 gal |
| Front Axle Fluid Capacity | 4.3 gal |
Engine
| Engine Model | 3CX ECO SITE MASTER |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 74.0 hp |
| Net Power | 536.5 hp |
| Number of Cylinders | 4 |
| Stroke | 5 in |
| Bore | 4 in |
| Fuel Type | Diesel |
| Emissions Certification | Tier IV |
| Rated Engine Speed | 1,200 rpm |
Transmission
| Max Speed | 4.7 mph |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
General Specifications
| Operating Weight lbs (kg) | 17,748 (8,050) Starting 2025 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 18-4 (5.59) Starting 2025 Model Year |
| Backhoe Loading Height ft. (m) | 14-3 (4.34) Starting 2025 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 26.3 (43) Starting 2025 Model Year |
| Loader SAE HP (kw) | 74 (55) Starting 2019 Model Year |
| Loader Lift Capacity lbs. (kg) | 7,670 (3,479) Starting 2025 Model Year |
| Loader Breakout Force lbs. (kg) | 14,398 (6,531) Starting 2025 Model Year |
Backhoe
| Bucket Dig Force | 11,847 lb |
|---|---|
| Load Height | 130 in |
| Bucket Dig Force - Extended | 11,847 lb |
Loader
| Lift Capacity | 3,364 lb |
|---|---|
| Bucket Breakout Force | 8,285 lb |
| Bucket Width | 88 in |
| Reach at Max Dump Height | 206 in |
| Dig Depth | 0 in |
| Dump height | 108 in |
| Load over height | 118 in |
Electrical System
| Alternator | 95 |
|---|---|
| Battery | 1000 CCA (120 amp) |
| Front working lights | 4 adjustable |
| Gauges | Tachometer engine coolant temp fuel level hourmeter clock |
| Pre-wire | Radio speakers (cab) beacon (all) |
| Rear working lights | 4 adjustable |
