JCB

435S

Wheel Loader

Operating Weight
30,986 lb
Bucket Capacity - heaped
2.50 yd³
Gross Power
230.0 hp
Net Power
206.0 hp
All wheel loaders

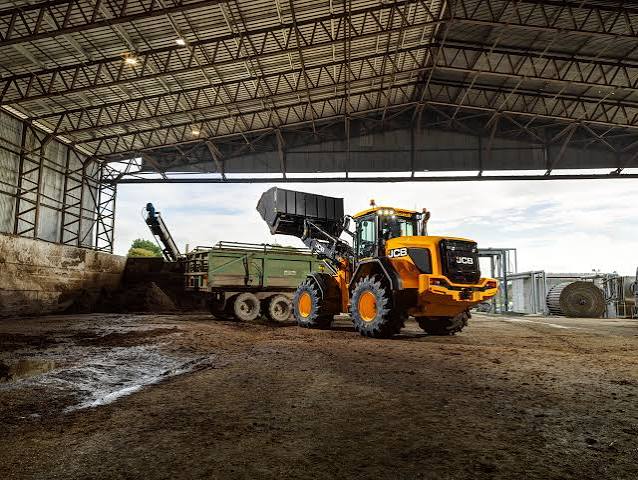

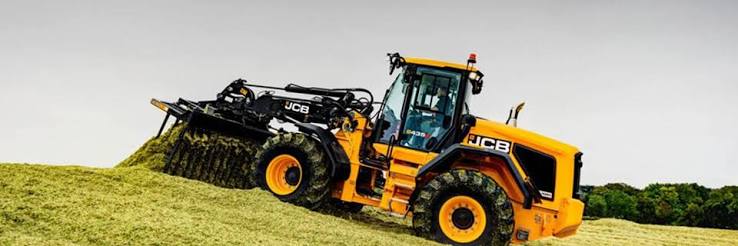

JCB 435S Wheel Loader
1 / 5
Image 1 of 5
Image: jcb.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,986 lb
Fuel Capacity105.7 gal
Hydraulic System Fluid Capacity55.5 gal
Operating Voltage24 V
Turning Radius233 in
Rear Axle Oscillation11 °
Alternator Supplied Amperage120 A
DEF tank capacity10.6 gal
Articulation Angle40 °
Payload10,247 lb
Full Turn Tipping Load20,494 lb
Auxiliary fuel tank105.7 gal

Engine

Engine specifications
Engine ModelQSB
Displacement409 in³
Power Measured @2,100 rpm
Gross Power230.0 hp
Net Power206.0 hp
Number of Cylinders6
AspirationTurbo Charged
Torque Measured @1,500 rpm
Engine TypeCummins
Emission Tier LevelEU Stage IV US EPA Tier 4F
Air cleanerCyclonic pre-filter with engine fan scavenge system
No. of Valves4
Fan drive typeHydraulically driven cooling fan

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.9 gal/min
Raise Time4.7 s
Lower Time2.8 s
Dump Time1.8 s
Relief Valve Setting3,190 psi
Pump TypeTwin variable displacement piston pumps
Total cycle9.3 s

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab148 in
Wheelbase121 in
Width Over Tires118 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground284 in
Hinge Pin - Max Height155 in

Transmission

Transmission specifications
Max Speed - Forward32.5 mph
Max Speed - Reverse22.5 mph
Transmission Type6 speed with lock up converter ZF 6WG210
Number of Forward Gears6
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.50 yd³
Bucket Capacity - struck2.20 yd³
Dump Clearance at Max Raise117 in
Breakout Force31,024 lb
Bucket Width101 in
