JCB
New Holland
EH30.B

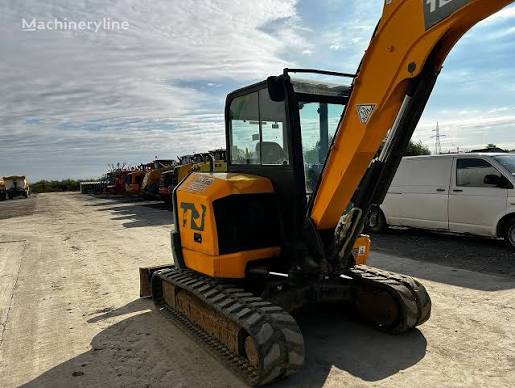

Mini Excavator
30 specifications
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 11,830 lb |
|---|---|
| Operating Voltage | 12 V |
Engine
| Engine Model | Stage 3A 404D-22 |
|---|---|
| Displacement | 132,971 in³ |
| Gross Power | 35.7 hp |
| Net Power | 14.5 hp |
| Alternator | 85 A |
| Cooling system | Water cooled |
| Fuel | Diesel |
Weights
| Shipping | 11,544 lb |
|---|
Hydraulic System
| Auxiliary hydraulic flow | 23.8 gal/min |
|---|---|
| Excavator/track main relief | 3,844 psi |
| Nominal output | 33.3 gal/min |
| Slew main relief | 3,133 psi |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 101 in |
| Tail Swing Radius | 40 in |
| Width Over Tracks | 40 in |
| Transport Length | 217 in |
| Track Gauge | 61 in |
| Undercarriage Overall Length | 98 in |
| Cab height | 100 in |
| Cab width | 40 in |
| Overall width of superstructure | 73 in |
| Cab length | 341.1 gal |
Undercarriage
| Number of bottom rollers per side | 4 |
|---|---|
| Tractive Effort | 80 lb |
| Track tension | Grease |
Fluid Capacities
| Fuel Tank | 20.1 gal |
|---|---|
| Hydraulic system | 26.5 gal |
| Engine Oil | 2.5 gal |
| Hydraulic Tank | 14.6 gal |
| Engine coolant | 3.2 gal |
Boom/Stick Excavator Option 1
| Max.Dumping Height | 169 in |
|---|---|
| Max Digging Height | 223 in |
| Max Digging Reach | 241 in |
| Maximum digging depth - dozer up | 152 in |
| Maximum vertical wallcut depth | 81 in |
| Maximum digging depth - dozer down | 161 in |
| Maximum height to dipper nose pivot pin | 204 in |
| Minimum front swing radius (no offset) | 104 in |
| Max Digging Reach on Ground | 236 in |
Boom
| Boom swing left | 75 ° |
|---|---|
| Boom swing right | 55 ° |
| Bucket rotation | 201 ° |
| Bucket tearout | 3,507 lb |
| Dipper tearout | 1,978 lb |
| Dipper rotation | 126 ° |
| Slew speed | 8 rpm |
Blades
| Blade Width | 78 in |
|---|---|
| Blade Height | 16 in |
| Approach angle | 31 ° |
| Dig depth (below ground) | 19 in |
| Maximum height | 18 in |
Performance
| Travel speed low | 1.9 mph |
|---|---|
| Travel Speed - High | 2.9 mph |
