Kubota

KX91-3

Mini Excavator

Operating Weight
7,110 lb
Max Digging Depth
126 in
Net Power
28.0 hp
All mini excavators

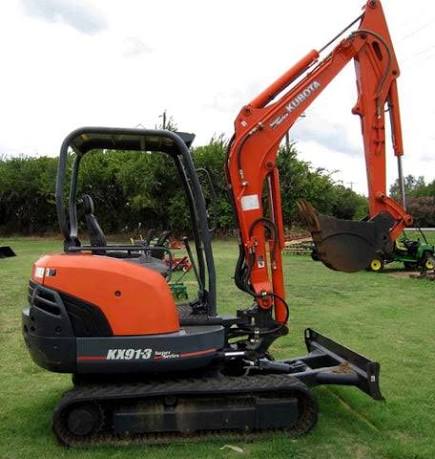

Kubota KX91-3 Mini Excavator
1 / 5
Image 1 of 5
Image: kubota.com.mm

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,110 lb
Fuel Capacity11.9 gal
Hydraulic Pump Flow Capacity27.3 gal/min
Hydraulic System Fluid Capacity9.5 gal

Engine

Engine specifications
Engine ModelD1503
Displacement92 in³
Power Measured @2,300 rpm
Net Power28.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Width to Outside of Tracks61 in
Digging Depth126 in
Digging Reach126 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.9 mph
Drawbar Pull8,363 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth126 in
Max Reach Along Ground203 in
Max Vertical Wall Digging Depth95 in
Max Loading Height139 in
Shipping Length of Unit189 in
Max Cutting Height196 in
Shipping Height of Unit97 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
