Komatsu

PC10-2

Mini Excavator

Operating Weight
4,387 lb
Max Digging Depth
83 in
Net Power
17.0 hp
All mini excavators

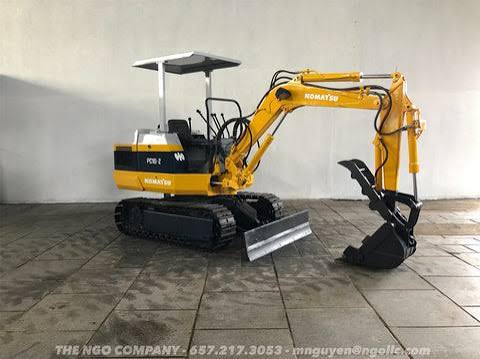

Komatsu PC10-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,387 lb
Hydraulic Pump Flow Capacity14.3 gal/min
Hydraulic System Relief Valve Pressure2,490 psi

Engine

Engine specifications
Engine Model3D75-1A
Displacement69 in³
Net Power17.0 hp
Max Torque43 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab90 in
Length of Track on Ground53 in
Tail Swing Radius48 in
Width to Outside of Tracks53 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge43 in
Max Travel Speed1.1 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth83 in
Max Reach Along Ground148 in
Max Vertical Wall Digging Depth59 in
Max Loading Height90 in
Shipping Length of Unit150 in
Max Cutting Height131 in
Shipping Height of Unit90 in
