JCB

S2032E

Aerial Lift

Max Platform Height
250 in
All aerial lifts

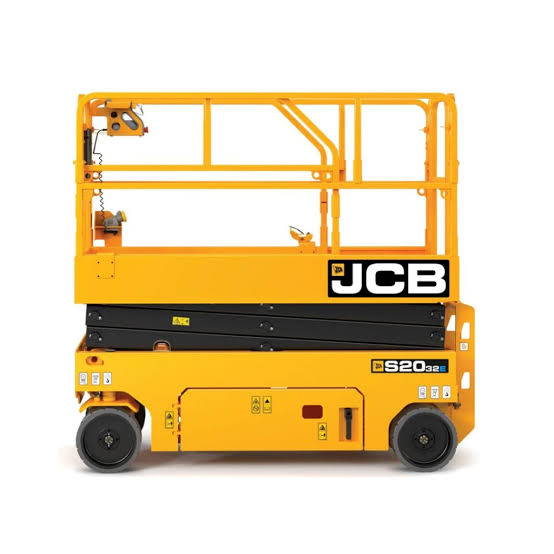

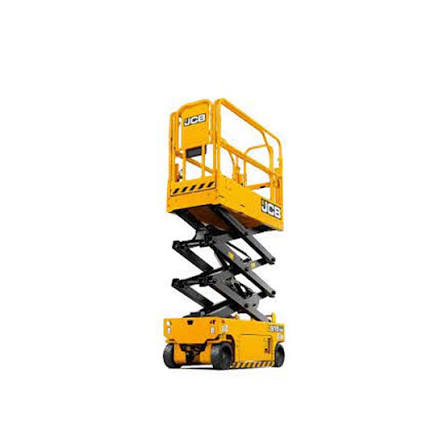

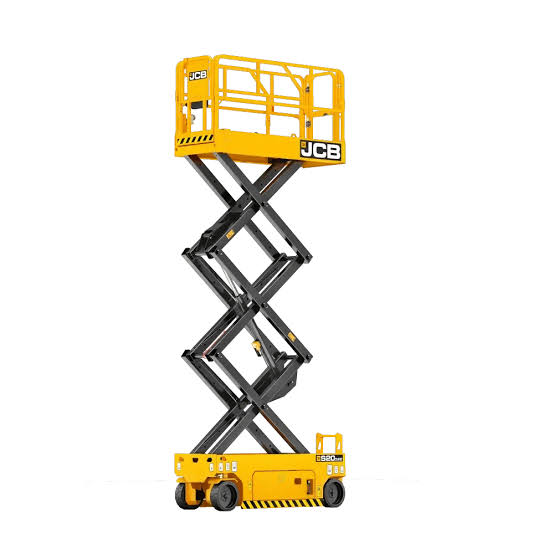

JCB S2032E Aerial Lift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Engine

Engine specifications
Engine ModelS2032E

Hydraulic System

Hydraulic System specifications
system pressure3,481 psi
Hydraulic Oil capacity(Power angle tilt dozer)3.7 gal
Hydraulic system tank4.8 gal

Dimensions

Dimensions specifications
Ground Clearance4 in
Weight4,043 lb
Turning Radius - Outside74 in
Solid tyre dimensions305 x 115 mm (12 x 4.5)in

Brakes & Steering

Brakes & Steering specifications
Brakes Type2 rear-wheel
Gradeability25
Drive and steer model2 front-wheel

Electrical System

Electrical System specifications
Battery6V x 4 (225)
Input voltage of Charger100-24 VAc
Output voltage of Charger25 A
Power unit4.5 hp

Performance

Performance specifications
Load capacity1,852 lb

Platform

Platform specifications
Max Platform Height250 in
Max Working Height322 in
Drive Speed - Platform Elevated0.5 mph
Drive Speed - Platform Lowered2.0 mph
Extension outreach36 in
Max allowable side force (indoor)90 lb-ft
Max allowable slope (side/side)2 °
Max. allowable slope (front/back)3 °
Overall height (stowed, guardrail unfolded)88 in
Overall length (stowed , guardrail folded)95 in
Overall width (stowed)32 in
Max allowable wind speed (outdoor)28.0 mph
Max. allowable side force (outdoor)45 lb-ft
