JLG

150HAX

Aerial Lift

Max Platform Height
1,800 in
Overall Length
40 in
Overall Width
139 in
All aerial lifts

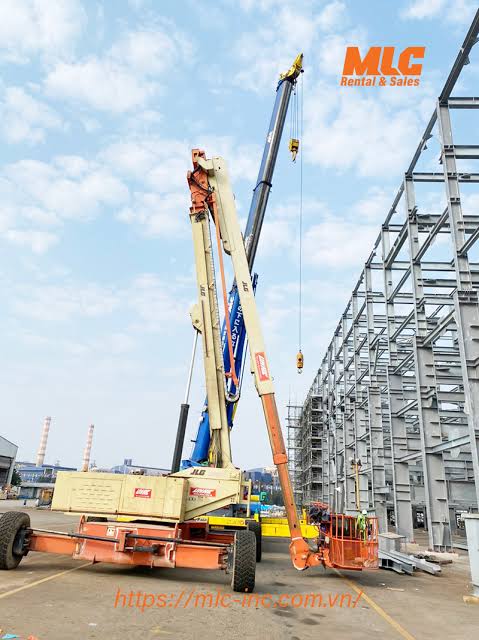

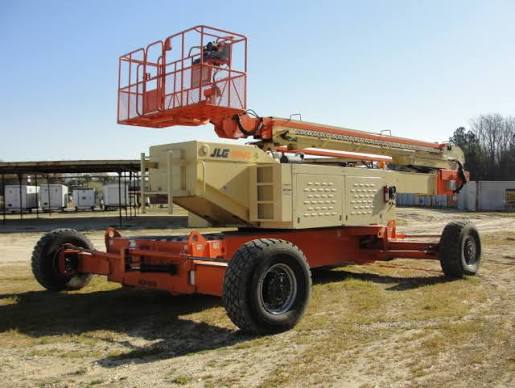

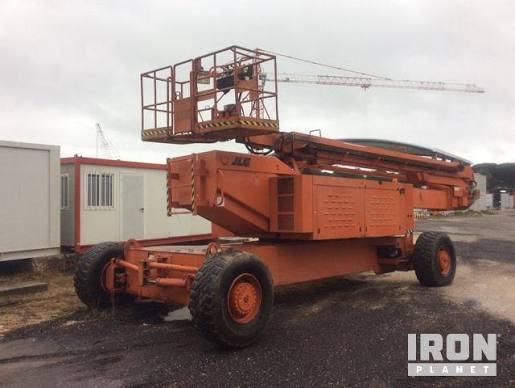

JLG 150HAX Aerial Lift
1 / 5
Image 1 of 5
Image: manliftgroup.com

Specifications

21 data points

Engine

Engine specifications
Engine Model4B3.9C
Gross Power76.5 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase217 in
Overall Length40 in
Overall Width139 in
Turning Radius325 in
Overall Height - mast lowered169 in

Performance

Performance specifications
Operating Weight58,101 lb
Max Speed3.0 mph
Tire Size445/65R22.5
Hydraulic System Fluid Capacity124.0 gal
Tire Fill/Typefoam
Fuel Capacity68.1 gal

Platform

Platform specifications
Max Platform Height1,800 in
Max Platform Weight Capacity1,001 lb
Platform Inner Length96 in
Platform Inner Width36 in
Max Horizontal Reach952 in
Platform Rotation132 °
